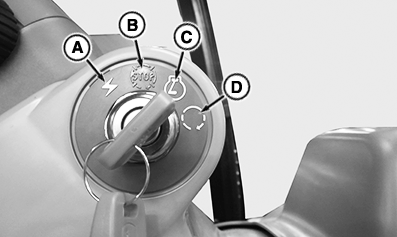

Operate Key Switch

RXA0152707-UN-11JUL16

A - Accessory Position

B - Stop Position

C - Run Position

D - Start Position

NOTE: If temperature is below 5°C (41°F), see “Cold Weather Starting” procedure in this section.

ACCESSORY: Push in and turn key to accessory position (A) to power electrical functions.

STOP: Turn key to stop position (B) to stop engine and turn off electrical functions.

RUN: Turn key to run position (C). Check gauges and indicator lights before starting.

START: Turn key to start position (D) to start engine. Key returns to run position when released.
