Cold Weather Starting

RXA0155019
RXA0155019-UN-26OCT16

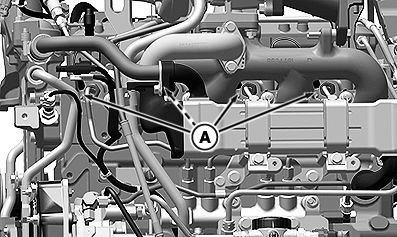

Glow Plug Locations

RXA0153098
RXA0153098-UN-28JUL16

A - Glow Plugs (4 used)

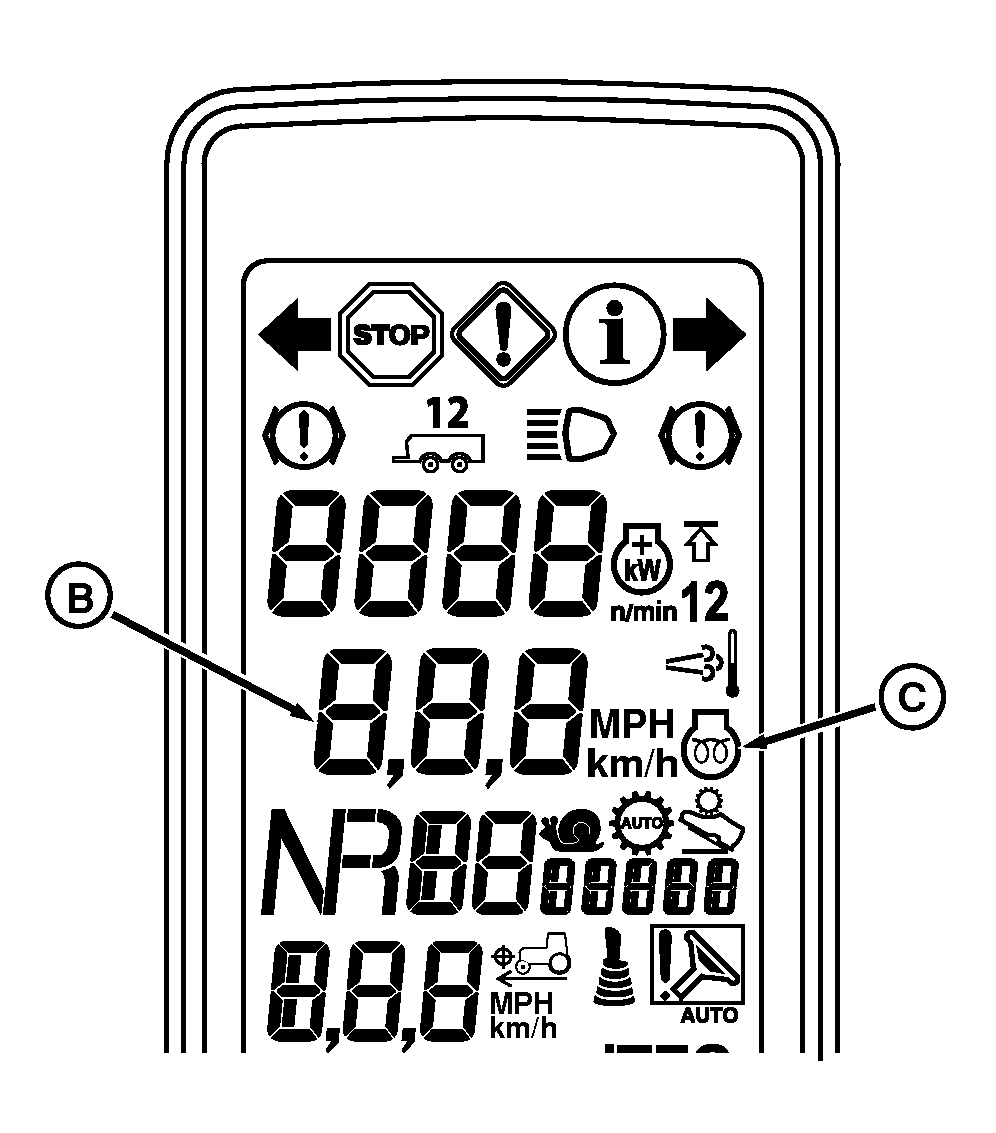

B - Machine Ground Speed Icon

C - Cold Start Indicator Icon

IMPORTANT: DO NOT use starting fluid.

  1. Turn key switch to run position, but DO NOT start engine.

  2. Observe display for the cold start indicator icon (C) to appear.

  3. A cold start countdown begins, utilizing the machine speed icon (B) to indicate glow plugs (A) are heating up.

  4. When the cold start countdown reaches zero, icon turns off.

  5. Start engine and allow to warm up. See “Run Engine” in this section for procedure.

MP60050,0000949-19-20161129
