Battery Disconnect Switch

CAUTION: Never switch off power at battery while engine is running! Damage to machine electronics is possible, and voltage peaks at alternator can be dangerous.

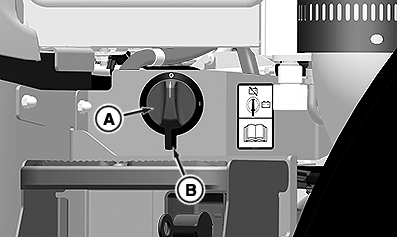

RXA0155617-UN-16NOV16

Battery Disconnect Switch OFF Position Shown

A - Battery Disconnect Switch

B - Lock Tabs

The battery disconnect switch allows power from the battery to be cut off from the rest of the electrical system. Ignition switch must be in the off position.

NOTE: Wait at least 30 seconds after turning engine

off to activate battery disconnect switch.

After the ignition switch has been turned to the off position and the operator has waited 30 seconds, the battery disconnect switch (A) can be rotated counter-clockwise to the power off position as shown to shut the power off to the rest of the machine.

The battery disconnect switch can be locked in this position by locking together the lock tabs (B).

To restore power to the machine, turn the battery disconnect switch (A) clockwise to the power on position. Allow another 30 seconds before turning the ignition switch from the off position.

IMPORTANT: When Storing for long periods of time, turn battery disconnect switch to the off position (machine electrical system disconnected from battery power supply). Battery discharges if machine is not used, and battery cut-off is in on position.
