Light Switch

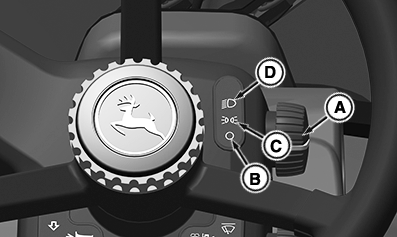

RXA0155226-UN-31OCT16
A - Light Switch
B - Off Position
C - Park Position
D - Road Position
CAUTION: Use lights in park or road position while operating
on public roadways during day or night.
DO NOT operate the machine on public roadways with work lights on. Other machine operators can be blinded or confused, impairing their driving ability.
Rotate light switch (A) from the off position (B) forward to park position (C) to turn clearance and tail lights on. Rotate light switch to road position (D) to turn on headlights in addition to clearance and tail lights. Turn on additional work lights on the key pad as desired in any position.
|
Switch Position |
Use |
Clearance Lights |
Tail Lights Red |
Front Work Lights |
Side and Rear Work Lights |
Headlights Front Grille |
|---|---|---|---|---|---|---|
|
B—Off |
Field, Day |
Off |
Off |
On1 |
On1 |
Off |
|
C—Park |
On Road, Night |
On |
On |
On1 |
On1 |
Off |
|
D—Road |
Field, Night |
On |
On |
On1 |
On1 |
On |
|
1 Operator must select lights
on keypad to illuminate.
|
