Front Wiper and Washer

RXA0142299
RXA0142299-UN-09JUN14

RXA0153606
RXA0153606-UN-30AUG16

RXA0153605
RXA0153605-UN-29AUG16

A - Front Wiper / Washer Knob

B - Washer

C - Off

D - Intermittent

E - Slow

F - Fast

G - Front Wiper

H - Washer Reservoir

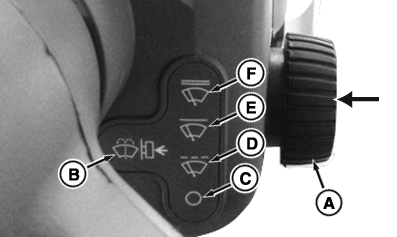

Wiper/washer knob (A) has four positions:

  • Off (C)
  • Intermittent (D)
  • Slow (E)
  • Fast (F)

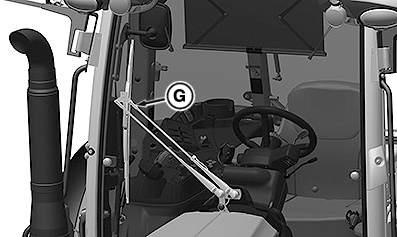

Rotate knob forward (clockwise) to increase front wiper (G) speed. Rotate rearward (counterclockwise) to slow or shut off. Push knob inward to operate front washer (B).

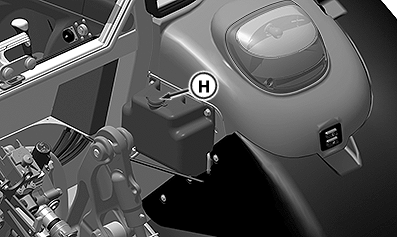

Washer fluid reservoir (H) is located behind the right-hand cab corner. Fill reservoir with windshield washer fluid as required. In cold climates, fill with non-freezing windshield washer fluid. Reservoir supplies both the front and rear wipers.

MP60050,0000950-19-20161202
