Mechanical Front Wheel Drive (MFWD)

RW13093-UN-07DEC88

RXA0153734-UN-06SEP16

RXA0153733-UN-06SEP16

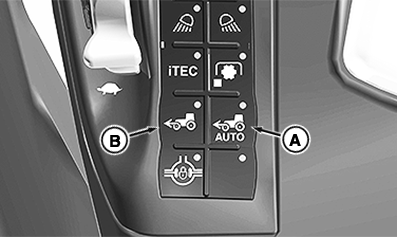

A - Auto MFWD Button

B - Manual MFWD Button

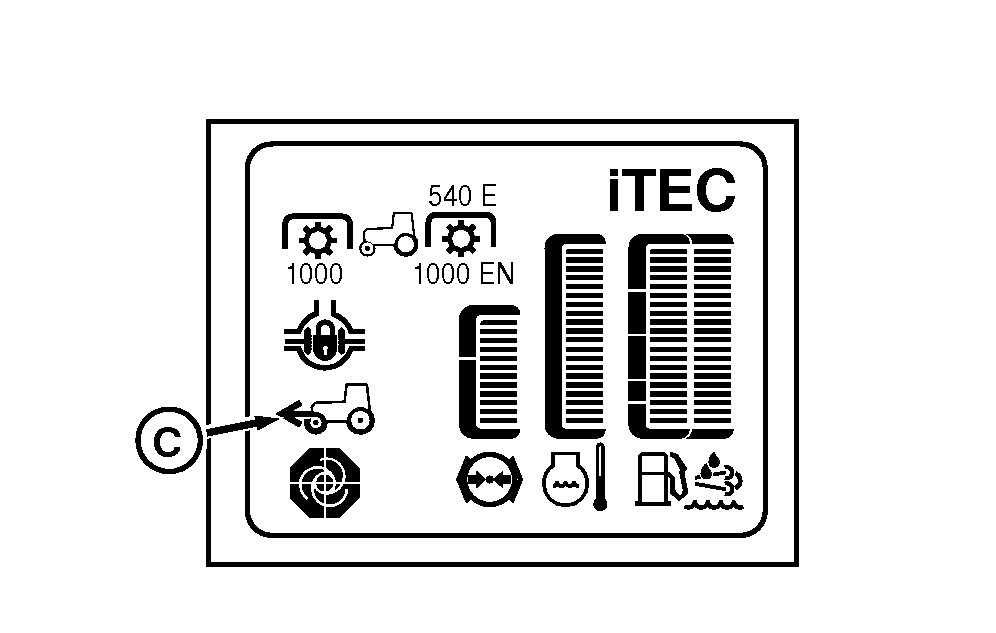

C - MFWD Indicator

CAUTION: Avoid personal injury or death. Reduce speed when driving on icy, wet, or graveled surfaces. Use correct ballast to avoid loss of steering control.

MFWD greatly increases traction, but it does not increase the stability of the machine. Use extra caution on slopes.

IMPORTANT: If the machine is under full load and mired down, engaging MFWD while tires are spinning has the potential to cause damage. Reducing the load and slowing wheel speed before engaging MFWD is highly recommended.

MFWD can be engaged and disengaged in all gears (forward and reverse) during normal operation and under load. To change the MFWD engagement make a selection from the table.

MFWD Selection	MFWD On	MFWD Off	MFWD Indicator (C)	LED on MFWD Button	Recommended for:
Auto (A)	Both brake pedals are depressed at any speed. Speed is below 19 km/h (11.8 mph). Neither brake pedal is individually depressed.	Either brake pedal is individually depressed. Speed is above 23 km/h (14.3 mph).	Illuminates when engagement conditions are met.	On when in Auto. Off in Manual or Brake Assist.	Transport where MFWD is needed.
Manual (B)	Always.	Never.	Always illuminated.	On when in Manual. Off in Auto or Brake Assist.	Field uses only at speeds below 23 km/h (14.3 mph).
Brake Assist (A and B off)	Speed above 5 km/h (3.1 mph) and both brake pedals are depressed.	Always unless both brake pedals are depressed above 5 km/h (3.1 mph).	Illuminates when engagement conditions are met.	Does not have an LED; on when both Auto and Manual LEDs are off.	Normal transport where MFWD is not needed.
