FieldCruise™

RXA0155562-UN-15NOV16

RXA0154428-UN-11NOV16

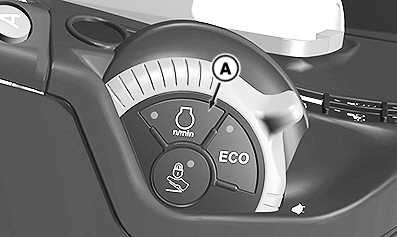

A - FieldCruise™ Button

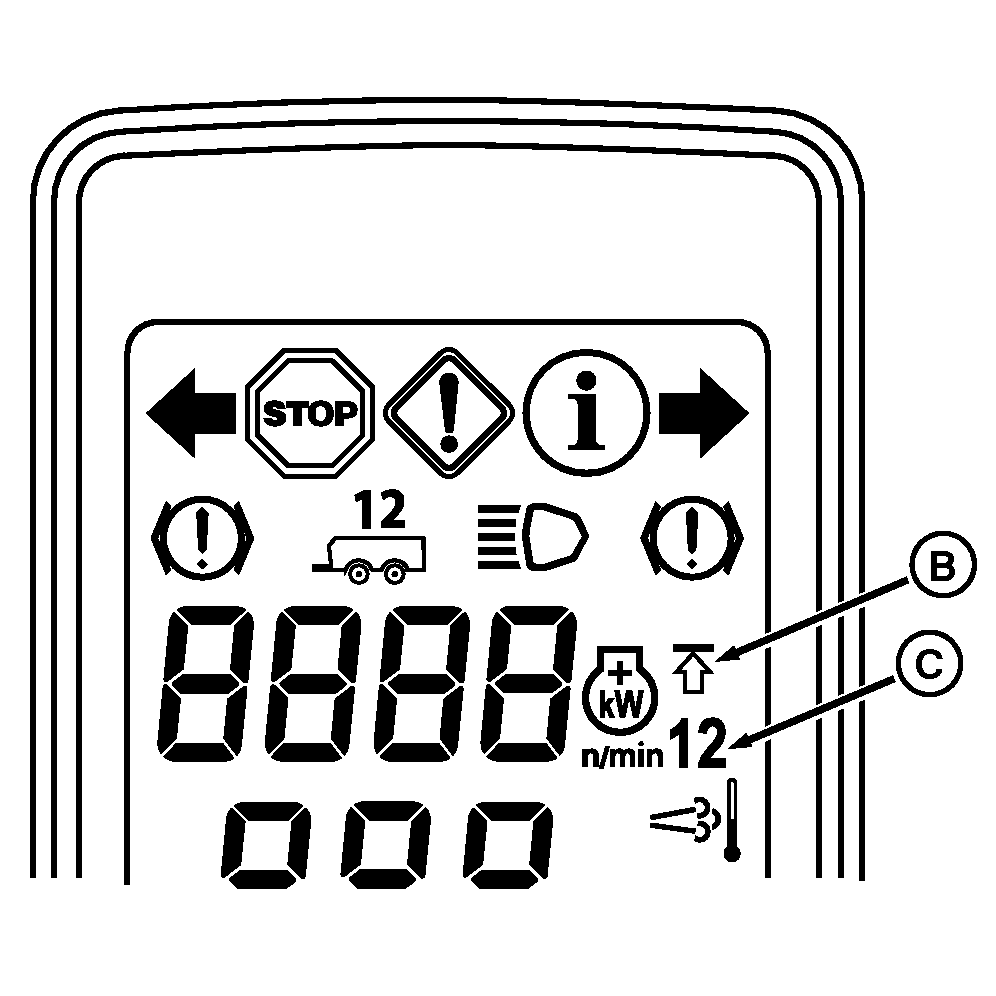

B - FieldCruise™ Icon

C - FieldCruise™ Selection Icon

Upper engine rpm is limited to the FieldCruise™ setting (1050—2250 rpm) in the engine menu. See “Engine Menu” in this section.

1. Depress the FieldCruise™ button (A) to engage. FieldCruise™ icon (B) and selection icon (C) light up on the primary display.

2. Depress the button again to disengage.
