Fill Fuel Tank

CAUTION: See the “Safety Precautions” section at the beginning of this manual for information about handling fuel.

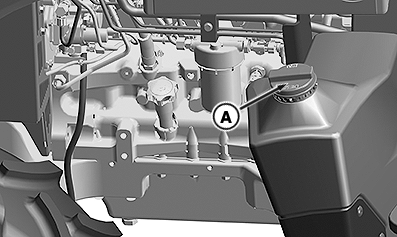

RXA0152813
RXA0152813-UN-24AUG16

A - Fuel Fill Cap

  1. Watch fuel level on the information display during operation.

  2. Fill if necessary during daily operation. Fill fuel tank at end of each day to prevent moisture condensation in the tank.

  3. Clean area around the fuel fill cap (A) before removing.

    NOTE: If the fill cap is locking, it must be unlocked before removing and relocked after reinstalling.

  4. Rotate fuel fill cap counterclockwise and remove.

  5. Fill tank with ultra-low sulfur diesel fuel.

  6. Replace fuel fill cap and rotate clockwise until secure.

MP60050,0000959-19-20161129
