Replace License Plate Light Bulb

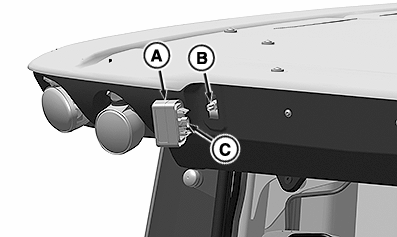

RXA0156048-UN-02DEC16

A - Light Cover

B - Roof Harness

C - Bulb Socket

1. Pull outward from cab roof to remove light cover (A).

2. Disconnect harness (B) from bulb socket (C).

3. Rotate bulb socket (C) and remove from light cover (A).

4. Remove and install a new bulb.

5. Reinstall in reverse order.
