Rear Hitch Components

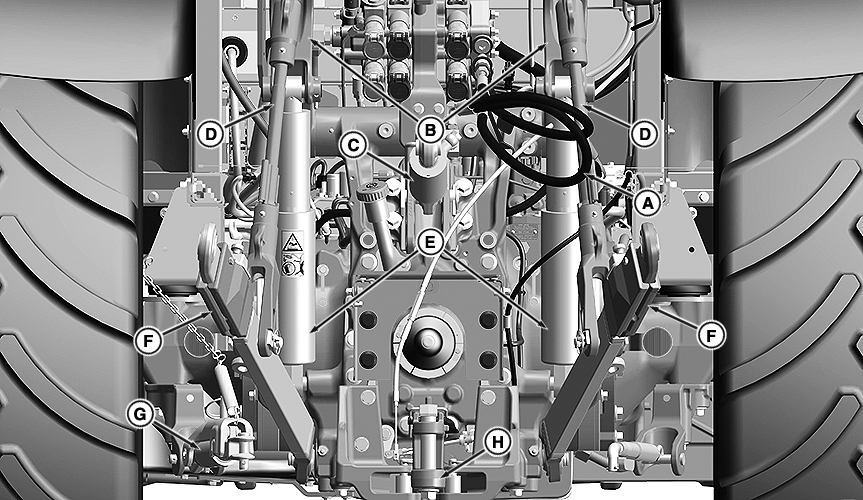

Drawbar Hitch

RXA0155356-UN-04NOV16

A - Hitch Valve

B - Lift Arms

C - Center Link

D - Lift Links

E - Hitch Cylinders

F - Draft Link Ends

G - Sway Bars

H - Drawbar Components

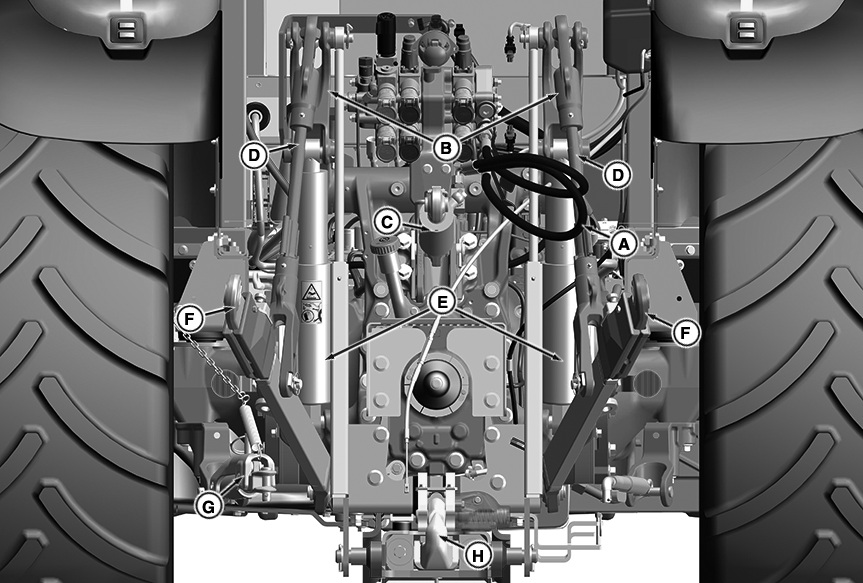

Pickup Hitch

RXA0155368-UN-04NOV16

A - Hitch Valve

B - Lift Arms

C - Center Link

D - Lift Links

E - Hitch Cylinders

F - Draft Link Ends

G - Sway Bars

H - Pickup Hitch Hook Components

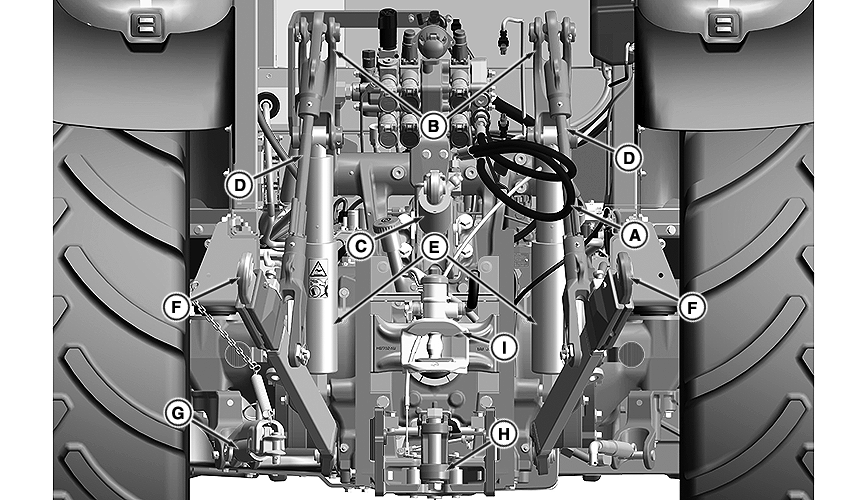

Automatic Wagon Hitch

RXA0155380-UN-05DEC16

A - Hitch Valve

B - Lift Arms

C - Center Link

D - Lift Links

E - Hitch Cylinders

F - Draft Link Ends

G - Sway Bars

H - Wagon Hitch Drawbar Components

I - Automatic Wagon Hitch

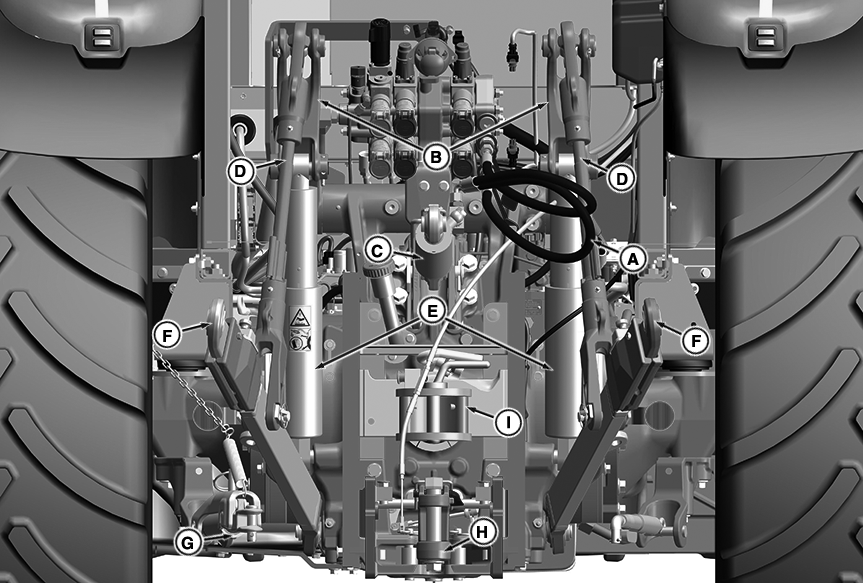

Cuna C Wagon Hitch

RXA0155392-UN-05DEC16

A - Hitch Valve

B - Lift Arms

C - Center Link

D - Lift Links

E - Hitch Cylinders

F - Draft Link Ends

G - Sway Bars

H - Wagon Hitch Drawbar Components

I - Cuna C Wagon Hitch

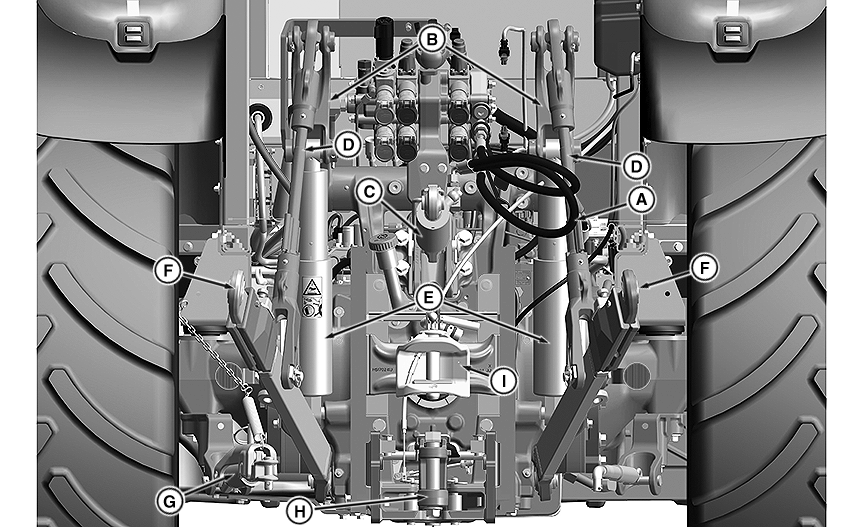

Manual Wagon Hitch

RXA0155404-UN-09DEC16

A - Hitch Valve

B - Lift Arms

C - Center Link

D - Lift Links

E - Hitch Cylinders

F - Draft Link Ends

G - Sway Bars

H - Wagon Hitch Drawbar Components

I - Manual Wagon Hitch
