Replace Wiper Blade

RXA0154419
RXA0154419-UN-07NOV16

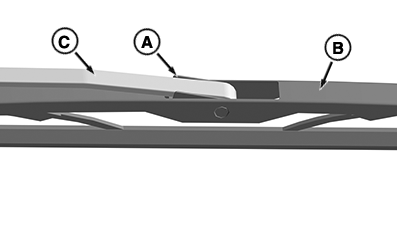

A - Blade Retainer

B - Wiper Blade

C - Wiper Arm

  1. Insert screwdriver in the blade retainer (A) to release.

  2. Slide wiper blade (B) toward the wiper arm (C) to remove.

  3. Align and slide new wiper into the arm until it locks into place.

MP60050,000096A-19-20161206
