Replace Loader Light Bulb

RXA0155953

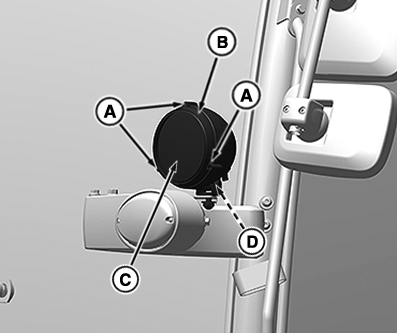

RXA0155953-UN-07DEC16

A - Retaining Ring Screws

B - Retaining Ring

C - Lens

D - Harness Connector

  1. Disconnect harness connector (D).

  2. Remove retaining ring screws (A) and retaining ring (B).

  3. Pull bulb to remove from socket.

  4. Install new bulb in socket.

  5. Reinstall in reverse order.
