Inspect Hitch and Drawbar for Wear

SERVICE INTERVAL
	Every 250 Hour

Inspect all hitch and drawbar components for possible wear and damage.

Replace worn parts as necessary.

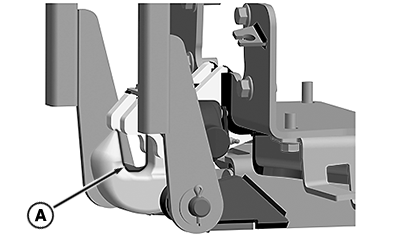

RXA0155967-UN-13DEC16

Pick-up Hitch

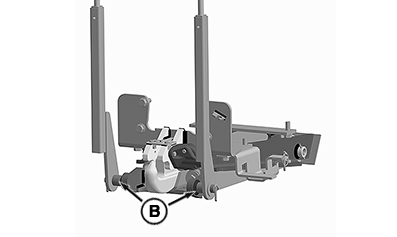

RXA0156144-UN-13DEC16

Pick-up Hitch Lift Arms

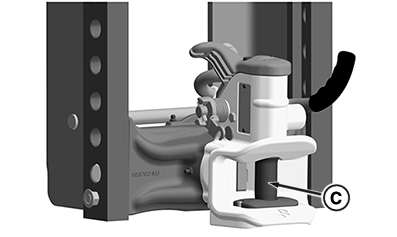

RXA0156140-UN-14DEC16

Automatic Wagon Hitch (Cylinder Pin)

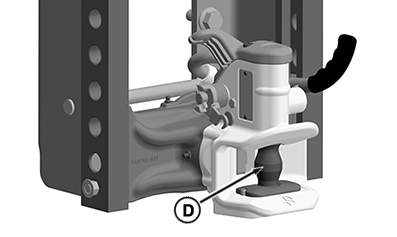

RXA0156138-UN-13DEC16

Automatic Wagon Hitch (Ball Pin)

A - Pick-up Hitch Wear Point

B - Pick-up Hitch Lift Arm Wear Point

C - Automatic Wagon Hitch with Cylindrical Pin

D - Automatic Wagon Hitch with Ball Pin Wear Point

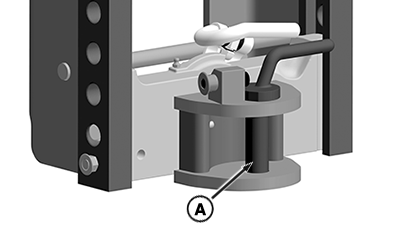

RXA0156139-UN-14DEC16

CUNA C Wagon Hitch

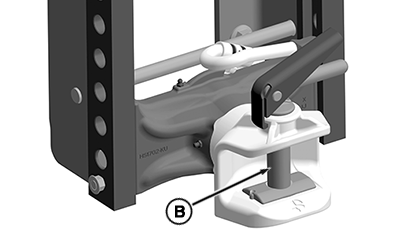

RXA0156136-UN-14DEC16

Manual Wagon Hitch

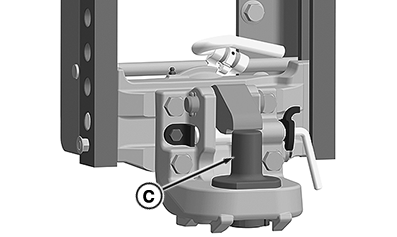

RXA0156141-UN-14DEC16

Height Adjustable Piton Fixed

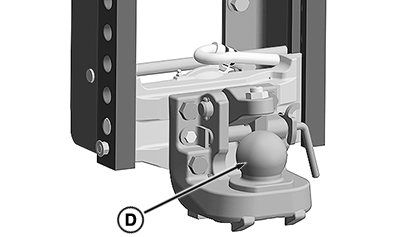

RXA0156143-UN-14DEC16

80 mm Ball Hitch

A - CUNA C Wagon Hitch Wear Point

B - Manual Wagon Hitch Wear Point

C - Height Adjustable Piton Fixed Wear Point

D - 80 mm Ball Hitch Wear Point
