Lubricate Rear Hitch

SERVICE INTERVAL
	Weekly or 50 Hour

Lift Cylinders and Draft Links

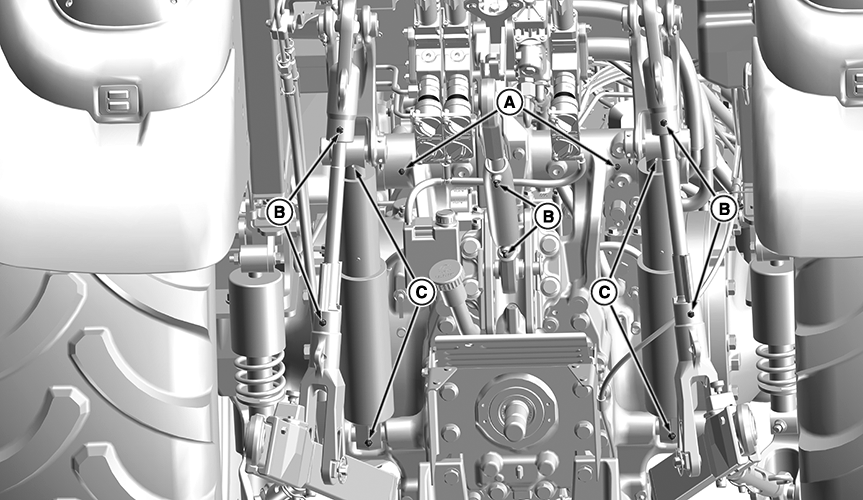

RXA0155647-UN-11NOV16

Rear View

A - Hitch Bushing Grease Point

B - Hitch Linkage Grease Point

C - Lift Cylinder Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease points (A—C). See “Fuel, Lubricants, and Coolant” for correct lubricant.

Pickup Hitch

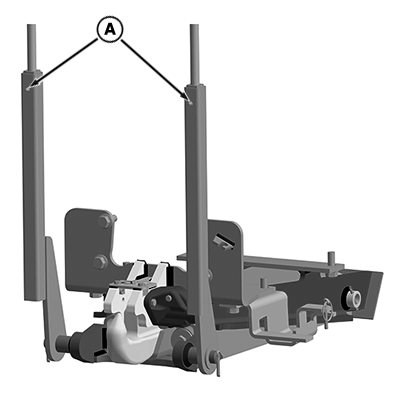

RXA0154372-UN-13DEC16

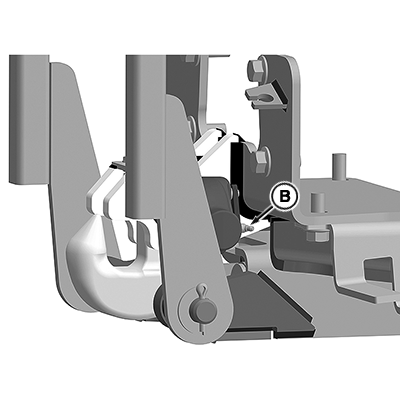

RXA0154373-UN-13DEC16

A - Lift Arm Grease Point

B - Locking Latch Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease points (A and B). See “Fuel, Lubricants, and Coolant” for correct lubricant.

Automatic Wagon Hitch

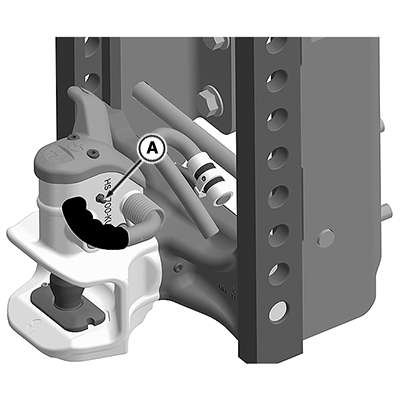

RXA0154365-UN-13DEC16

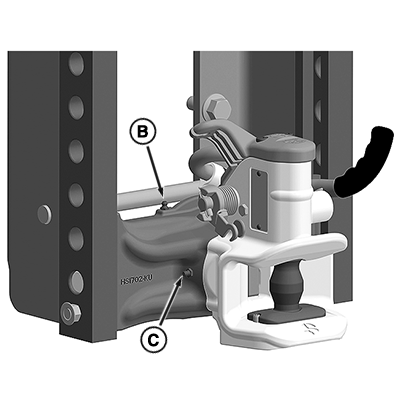

RXA0154366-UN-13DEC16

A - Locking Latch Grease Point

B - Height Adjustment Latch Grease Point

C - Hitch Pivot Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease points (A—C). See “Fuel, Lubricants, and Coolant” for correct lubricant.

Cuna C Wagon Hitch

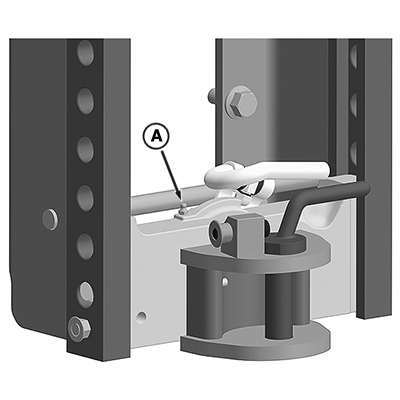

RXA0154367-UN-13DEC16

A - Height Adjustment Latch Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease point (A). See “Fuel, Lubricants, and Coolant” for correct lubricant.

Manual Wagon Hitch

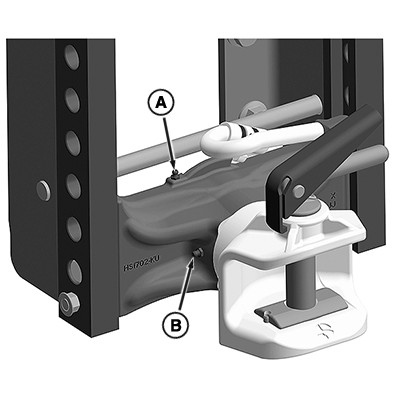

RXA0154364-UN-13DEC16

A - Height Adjustment Latch Grease Point

B - Hitch Pivot Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease points (A and B). See “Fuel, Lubricants, and Coolant” for correct lubricant.

80mm Ball Hitch

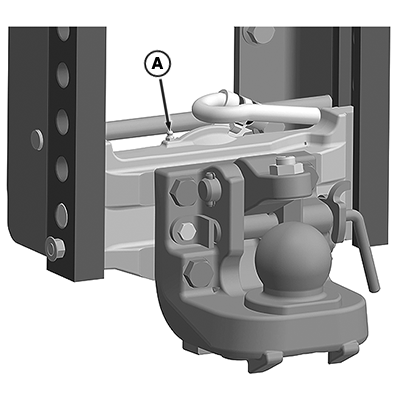

RXA0154371-UN-13DEC16

A - Height Adjustment Latch Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease point (A). See “Fuel, Lubricants, and Coolant” for correct lubricant.

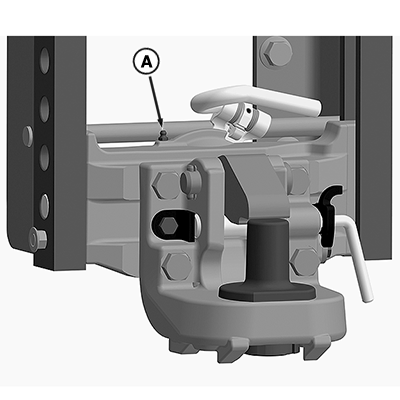

Adjustable Piton Hitch

RXA0154369-UN-13DEC16

A - Height Adjustment Latch Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease point (A). See “Fuel, Lubricants, and Coolant” for correct lubricant.

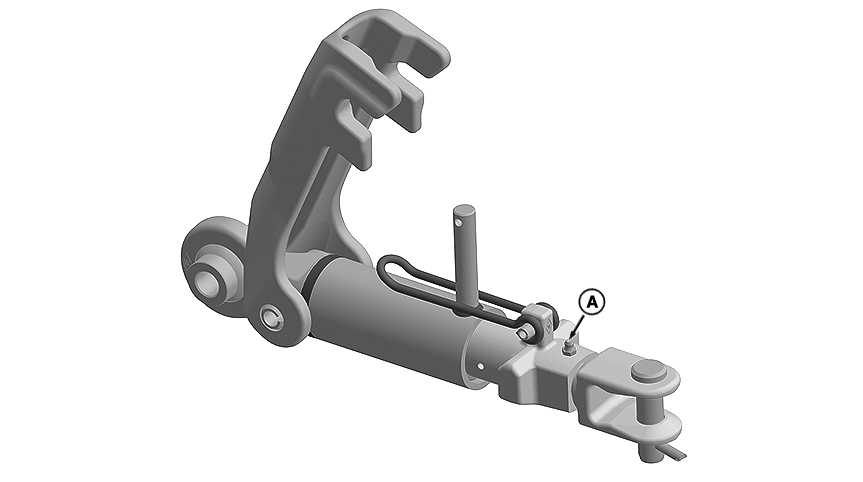

Automatic Stabilizer

RXA0154370-UN-09DEC16

A - Stabilizer Arm Grease Point

NOTE: Grease daily when operating in wet and muddy conditions.

Apply several shots of general-purpose grease to the grease point (A). See “Fuel, Lubricants, and Coolant” for correct lubricant.
