Service Brakes

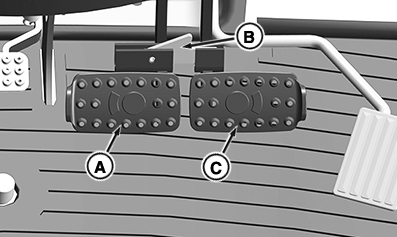

RXA0153748-UN-07SEP16

A - Left Brake Pedal

B - Brake Pedal Lock

C - Right Brake Pedal

IMPORTANT: To prevent unnecessary wear, never operate with a foot resting on the brake pedals.

• For field work, unlock brake pedals. Apply right brake pedal (C) lightly to assist in making sharp right-hand turns and left pedal (A) for left-hand turns.
• Before operating machine on a road or transporting, use lock (B) to hold brake pedals together.
• Use brakes lightly and cautiously at transport speeds.
• Avoid hard braking applications. Consult implement operator’s manual for recommended transport speeds.
• Use additional caution when transporting towed loads under adverse conditions, and when turning or stopping on inclines.
