Replacing Taillight Bulb

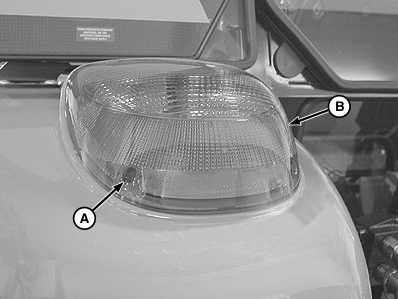

LV8583
LV8583-UN-14AUG03

Left-Hand Side

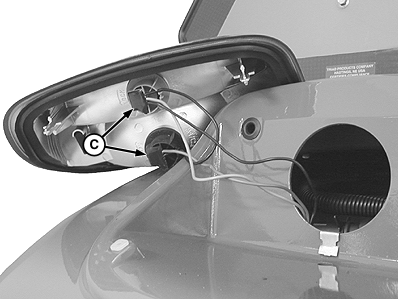

LV8584
LV8584-UN-14AUG03

A - Screw (2 used)

B - Housing

C - Socket (2 used)

  1. Remove screws (A).

  2. Pull housing (B) away from fender.

  3. Rotate socket (C) and remove from housing.

  4. Pull bulb to remove from socket.

  5. Install new bulb and socket in housing.

  6. Install housing and screws to fender.

CP00834,0001AD9-19-20160321
