Checking Neutral Start System — EH PTO

PY16711-UN-22OCT12

Cab

PY16712-UN-22OCT12

Cab

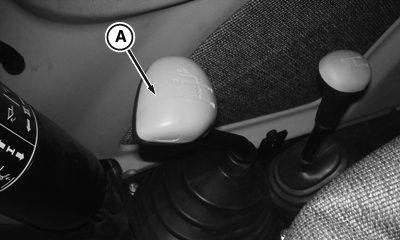

A - Gear Shift Lever

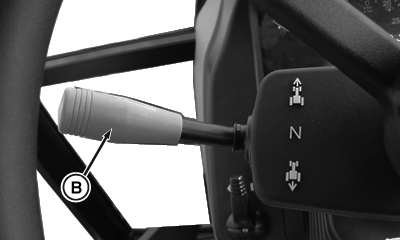

B - EH Directional Reverser Lever

Service Interval — Every 500 hours

Your tractor is equipped with interlocks to prevent inadvertent movement when the engine is started.

Transmission Controls

1. Depress clutch pedal and brake pedals.

2. Move gear shift lever (A) to any position except PARK or NEUTRAL position.

   Move EH Directional Reverser lever (B) to forward or reverse position.

3. Start engine. If engine starts in any of these positions, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start in NEUTRAL or PARK positions only.

PTO Switch

PY15213-UN-30MAY12

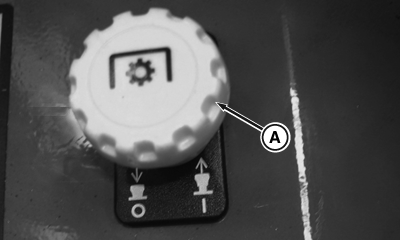

A - PTO Switch

1. Depress clutch pedal and brake pedals.

2. Lift PTO switch knob (A) up to the “I” position to engage PTO.

3. Start engine. If engine starts in this position, neutral start system should be repaired. See your John Deere dealer immediately.

Engine should start with switch in disengaged position only.
