Keep Cab Protection System Installed Properly

LV1689-19-04JUN96

PULV000152-UN-29OCT07

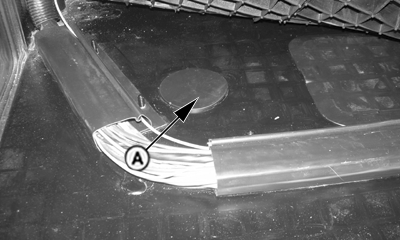

Plug—Front Mount (Left-Hand Side)

A - Plug

SERVICE INTERVAL —
	INITIAL — 10 HOURS
	REGULAR — WEEKLY OR 50 HOURS

CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Replace and tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, replace and tighten mounting cap screws to specification.

Inspect cab protection system mounting hardware every week or 50 hours for proper torque or replacement.

Lift up rubber floor mat and pry out plugs (A) to access FRONT mounting hardware.

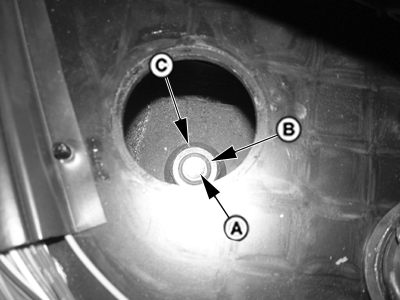

PULV000154-UN-29OCT07

Front Cab Mount

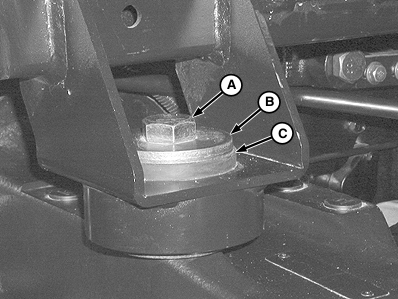

LV8682-UN-26AUG03

Rear Cab Mount

A - Cap Screw (4 used)

B - Washer (4 used)

C - Isolator (4 used)

Item	Measurement	Specification
Cab Protection System Mounting Cap Screws—Front	Torque	350 Nm (284 lb-ft)
Cab Protection System Mounting Cap Screws—Rear	Torque	220 N·m (162 lb-ft)
