Lubricate Front Axle Wheel Bearings — 2WD

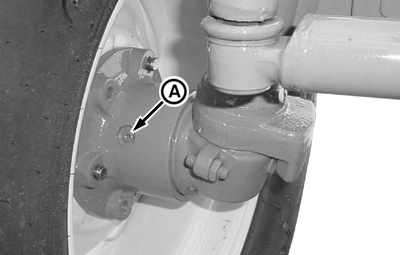

P13223-UN-30SEP04

5082E Tractor

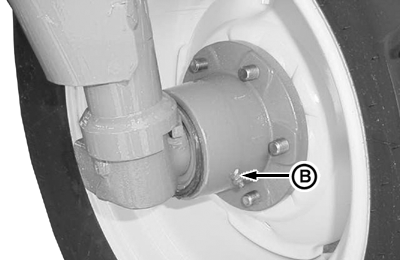

P13224-UN-30SEP04

High Clearance Tractor

A - Front Axle Plug

B - Front Axle Bearing Lub Fitting

Service Interval:

• Every 50 hours [under moist or muddy conditions or extreme loads (frontal loader)] • Every 500 hours (under normal conditions)

Lubricate front axle lub fittings with multipurpose grease. (See Grease in Fuels, Lubricants, and Coolants section).

NOTE: In tractors that are not High Clearance, it is necessary to remove plug (A) and install a lub fitting. Reinstall plug (A) after front axle bearings have been lubricated.
