Engine Cooling System Components

PY13171-UN-20OCT12

PY13172-UN-20OCT12

P13705-UN-05AUG05

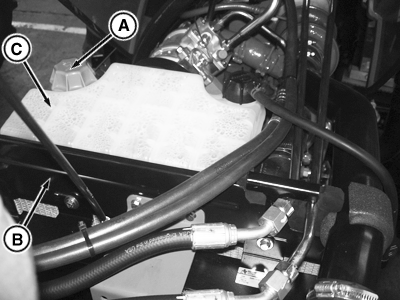

A - Radiator Cap

B - Radiator

C - Coolant Recovery Tank

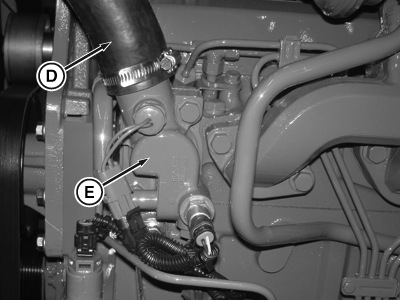

D - Upper Radiator Hose

E - Thermostat Housing

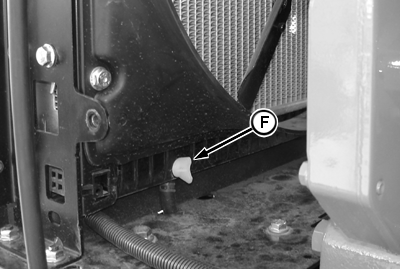

F - Radiator Drain

IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.

The Tractors utilize a remote coolant recovery tank. Make-up coolant is added to the coolant recovery tank rather than directly to the radiator.
