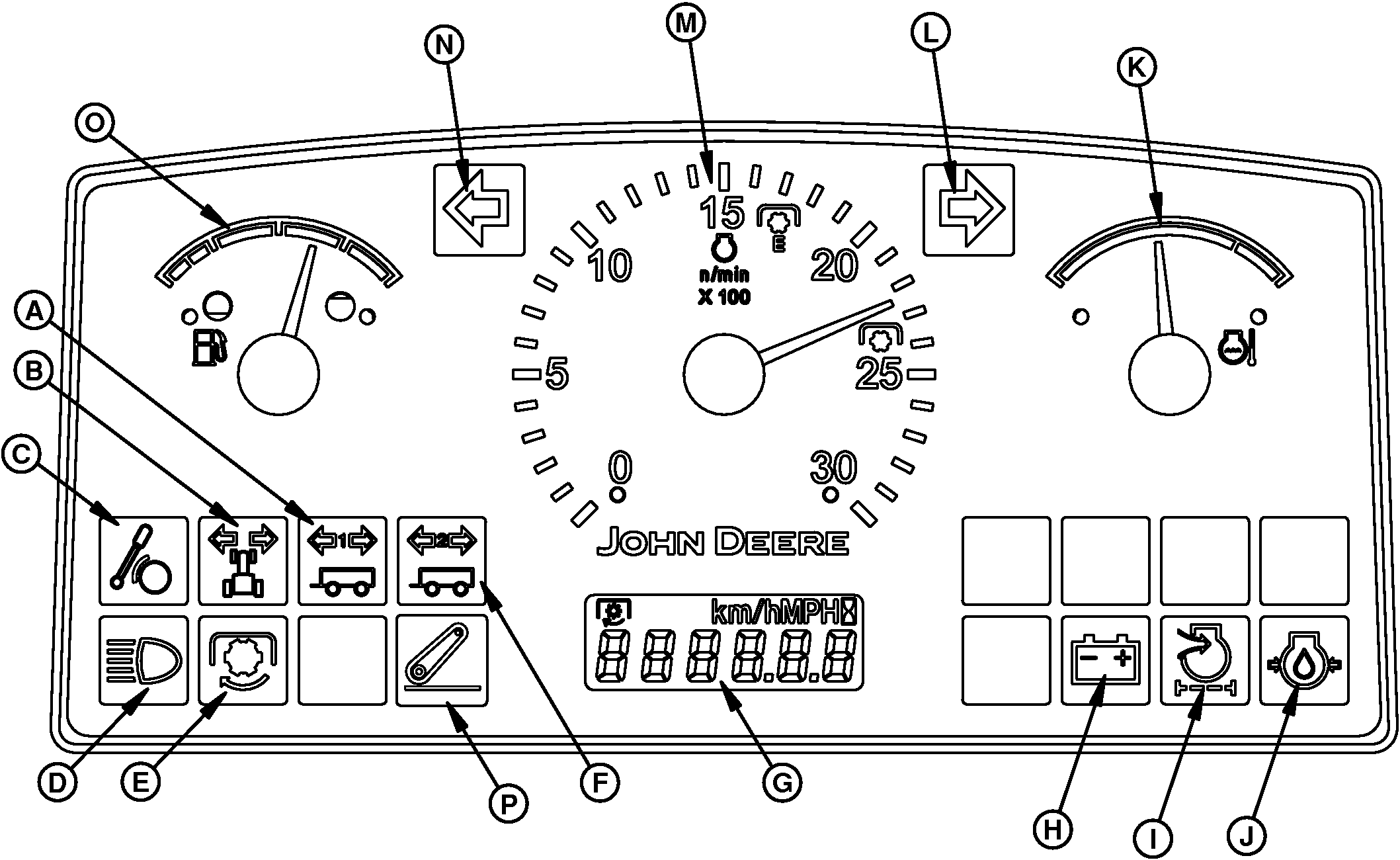

Instrument Cluster (Gauges and Indicator Lights) — SS

PY24442-UN-16JUN15

A	Trailer 1 Indicator (If Equipped)	Starts flashing when trailer turn-signal or hazard warning lights are switched on.
B	Vehicle Indicator	Starts flashing when vehicle turn-signal or hazard warning lights are switched on.
C	Hand Brake Indicator	Indicates that hand brake is engaged
D	High Beam Indicator	Illuminates when the headlights are switched on high beam.
E	PTO Engaged Indicator	Illuminates when rear PTO is engaged.
F	Trailer 2 Indicator (If Equipped)	Starts flashing when trailer turn-signal or hazard warning lights are switched on.
G	Information Display	Displays hour meter.
H	Charging System Indicator	Illuminates when alternator malfunction occurs. If necessary, have John Deere dealer diagnose vehicle.
I	Engine Air Cleaner Restriction Indicator	Illuminates when air cleaner element clogged (clean or replace element). If necessary, have John Deere dealer diagnose vehicle.
J	Engine Oil Pressure	If engine oil pressure warning light glows with engine running, shut off engine and check the level of engine oil.
K	Engine Coolant Temperature Gauge	Indicates engine coolant temperature. Red area indicates overheat (coolant level too low, dirty radiator, or clogged screen). SHUT OFF engine IMMEDIATELY to prevent damage. If necessary, have John Deere dealer diagnose vehicle.
L	Right Turn Indicator	Flashes when turn signal switch is switched to right-hand side.
M	Tachometer	Indicates engine speed, revolutions per minute (rpm).
N	Left Turn Indicator	Flashes when turn signal switch is switched to left-hand side.
O	Fuel Level Gauge	Indicates amount of fuel remaining in tank.
P	QRL Indicator	Illuminates when hitch malfunction occurs.
