Starting Engine Safety Sign

P13860-UN-15DEC05

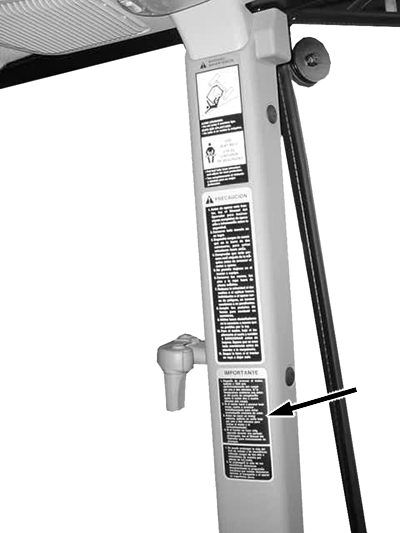

Location on Tractor

PY16678-UN-11OCT12

IMPORTANT:

1. After Starting engine, operate engine at approximately 1200 rpm (no load) for one to two minutes. If temperature is below freezing point, operate engine for two or four minutes (no load).
2. Start engine immediately if stalled while working to provide turbocharger lubrication.
3. Before stopping warm engine, idle several minutes under 1000 rpm to cool turbocharger turbine.
4. After prolonged idle periods, see Operator’s Manual for starting instructions.

1. Drivetrain and tire life can be extended by avoiding high loads at travel speeds below 6.0 km/h.
2. Refer to Operator’s Manual prior to towing tractor.
