Front Console Controls

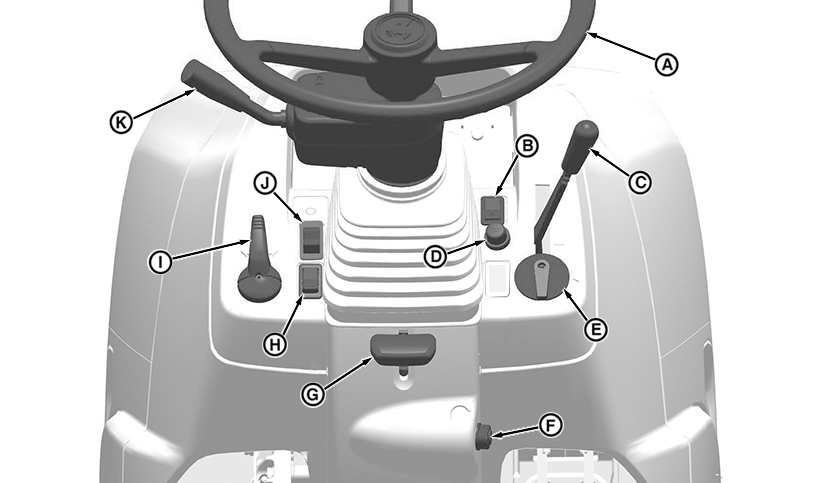

CPA0002636-UN-23MAR16

PR OOS

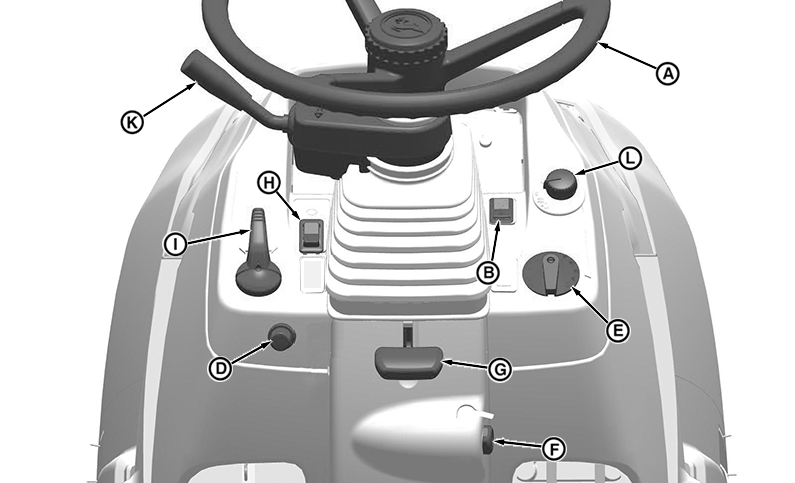

CPA0002637-UN-23MAR16

PR Cab

A - Steering Wheel

B - Mechanical Front-Wheel Drive Switch

C - Hand Throttle

D - Horn

E - Light Switch

F - Key Switch

G - Steering Wheel Tilt Lever

H - Roll Mode Switch (PR only)

I - Turn Signal Lever

J - Beacon Light Switch

K - Electro-Hydraulic Directional Reverser (PR only)

L - Wiper Switch (Cab only)

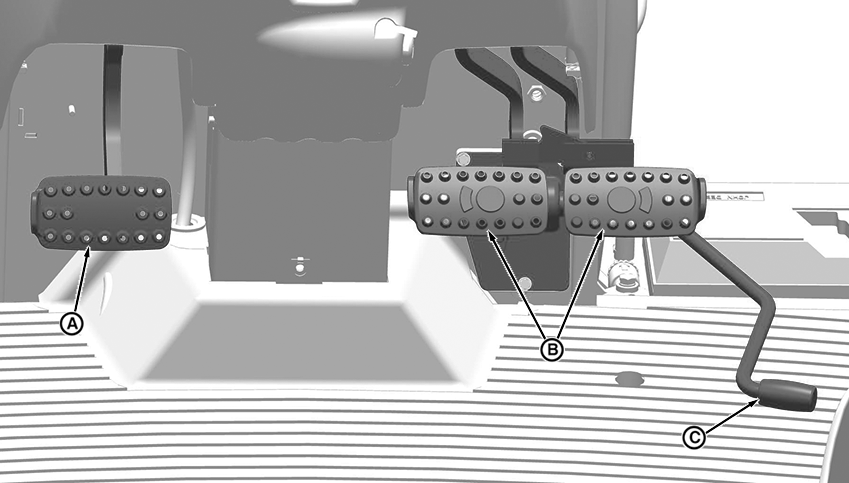

P17847-UN-11FEB16

Cab

A - Clutch Pedal

B - Brake Pedals

C - Foot Throttle

NOTE: SS is equipped different.
