Before Start the Engine

CAUTION:

TS220
TS220-UN-15APR13

Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to ventilate the area thoroughly.

  1. Check fuel gauge.

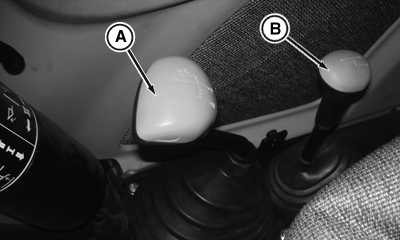

  2. PY16690
    PY16690-UN-18OCT12

    Cab

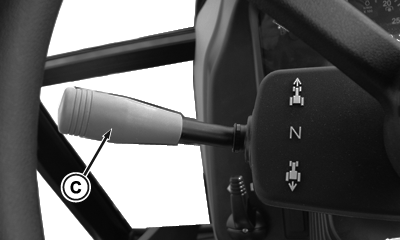

    PULV004928
    PULV004928-UN-18JUN09

    Cab

    A - Gear Shift Lever

    B - Range Shift Lever

    C - EH Directional Reverser Lever

    Transmission Controls: Put gear shift lever (A) in NEUTRAL or PARK and range shift lever (B) in NEUTRAL.

    PR: Put electro-hydraulic (EH) directional reverser lever (C) in NEUTRAL.

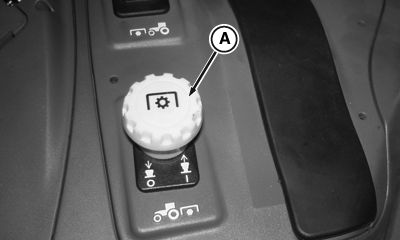

  3. PY16691
    PY16691-UN-18OCT12

    Cab

    A - PTO Switch Knob

    EH PTO control: Push PTO switch knob (A) down to disengage.

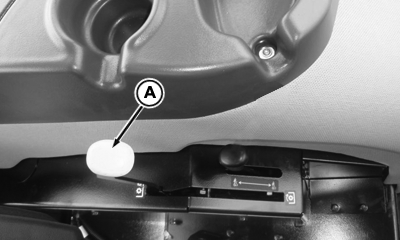

  4. P16503
    P16503-UN-11APR12

    Cab

    A - PTO Lever

    Mechanical PTO control: Pull PTO lever (A) back to disengage.

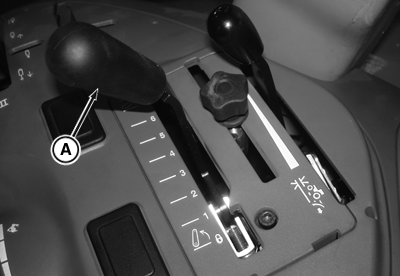

  5. PY16692
    PY16692-UN-18OCT12

    Cab

    A - Hitch Control Lever

    Push hitch control lever (A) forward to lower equipment to the ground.


  6. Turn key to RUN position and check to see if all indicator bulbs light. (If any indicator does not light, see your John Deere dealer.)

PX07220,0000112-19-20160331
