Start the Engine

TS177-UN-11JAN89

PY16694-UN-20OCT12

Cab

PY16695-UN-20OCT12

Cab

A - Hand Throttle

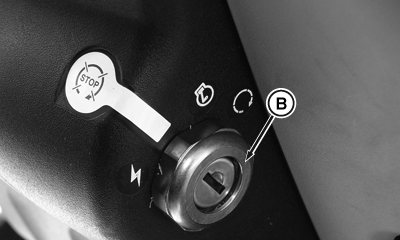

B - Key Switch

CAUTION: NEVER start engine while standing on ground. Do not start engine by shorting across starter terminals. If normal circuitry is bypassed, machine starts in gear and moves.

IMPORTANT: DO NOT run a cold engine at full throttle. Idle engine at 1200 rpm until it warms to operating temperature.

1. Start from operator seat with transmission in neutral or park. For PR Transmission, put EH directional reverser lever in NEUTRAL.

2. Push hand throttle (A) forward from idle position (1/3 of full throttle). Engine may not start with throttle pulled rearward.

3. IMPORTANT: DO NOT operate starter for more than 20 seconds at a time. If engine does not start, wait at least 2 minutes for the starter motor to cool before trying again.

   Depress clutch pedal and turn key (B) to START position. Release key when engine starts. If key is released before engine starts, wait until starter and engine stop turning before trying again.

4. Warm up tractor carefully. Charging and oil pressure warning indicators should go off and stay off. Coolant temperature gauge should begin to move into normal range.

5. Avoid unnecessary engine idling. Check fluid levels frequently for engine oil, coolant, transmission-hydraulic, and mechanical front wheel drive. Watch for fluid leaks.
