Operate Transmission — SS

PY14427-UN-20OCT12

Cab

PY24450-UN-18JUN15

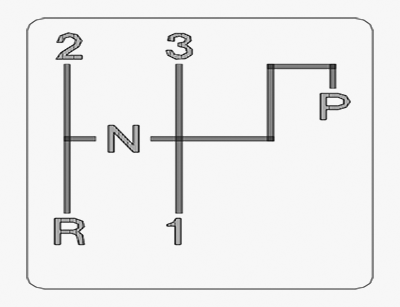

Gear Shift Pattern

PY25151-UN-18JUN15

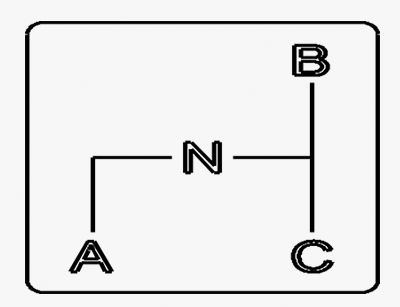

Range Shift Pattern

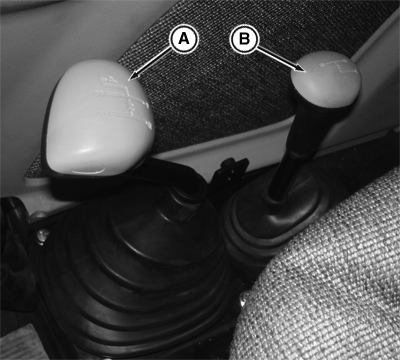

A - Gear Shift Lever

B - Range Shift Lever

Gear shift lever (A) provides three forward travel speeds and one reverse.

Shift lever (B) provides three speed ranges, A, B, and C.

Using range and gearshift levers in different combinations, nine forward speeds can be obtained. Reverse can be obtained in all speed ranges.

Gear shift must be in park position “P” or neutral position "N" for the engine to be started.

IMPORTANT: To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

Depress clutch pedal and stop tractor before shifting the range shift lever (B).

Depress clutch pedal before shifting the gear shift lever (A). Gear shifts (1, 2, 3) and direction shifts (forward, reverse) can be made on-the-go. Release clutch pedal gradually to take up load smoothly.
