Electrohydraulic Transmission System Indicator — PR

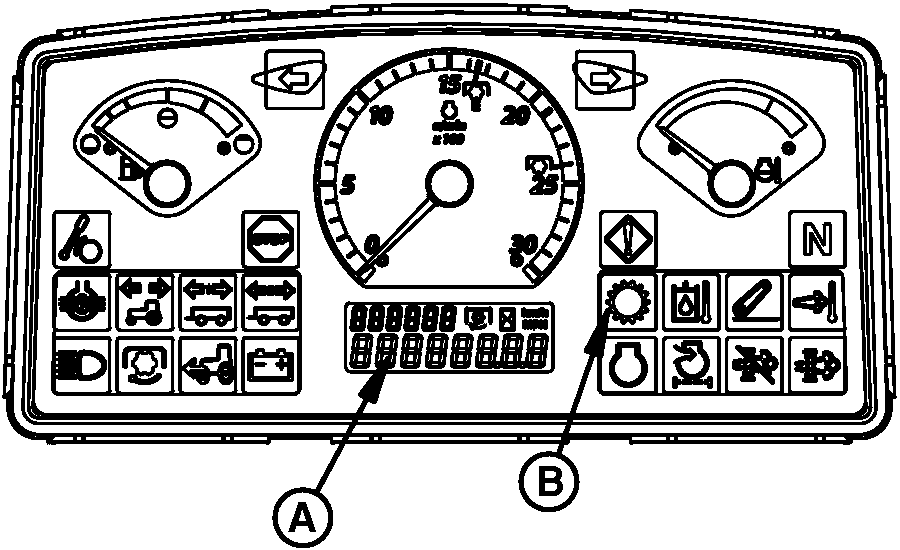

PY25188-UN-03SEP15

A - Information display

B - Transmission information indicator

Indicator (B) warns of a malfunction in the electrohydraulic transmission control system (see your John Deere dealer.) A diagnostic trouble code may be present at display (A). Electrohydraulic transmission control is available with PR tractors.

NOTE: Under certain circumstances, the tractor can still be driven even if there is an electrical fault in the transmission.

NOTE: Under certain circumstances when indicator ”N” is illuminated, transmission control is regained by cycling reverser lever to neutral and back into a direction.
