Creeper Gear Operation

PY14431-UN-20OCT12

Cab

PY14435-UN-20OCT12

Cab

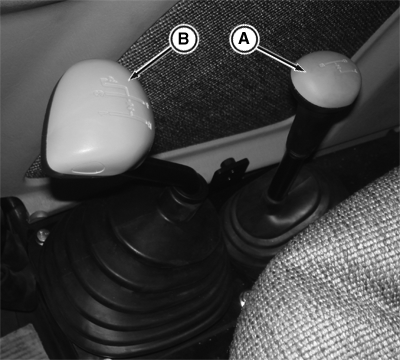

A - Range shift lever

B - Gear shift lever

A slow-speed gearing, creeper gear, is available as an option and provides slowest speed range.

Placing the range shift lever (A) in the optional creeper range (designated with a “snail” logo on the console) provides greatly reduced ground speeds for special operations. The gear shift lever (B) provides forward and reverse speed gears to be selected in creeper range.

NOTE: Range shift lever must be in neutral position to shift into creeper.
