Select Correct PTO Speeds

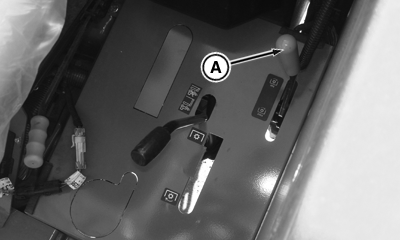

PY16412-UN-20OCT12

OOS

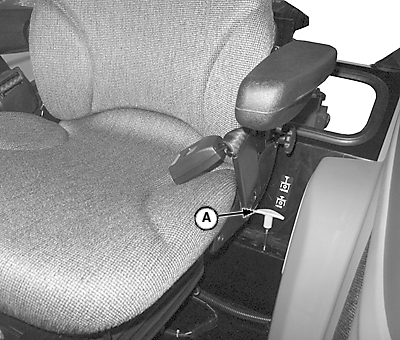

LV14212-UN-02MAY11

Cab

A - PTO 540/540E Shift Lever

540/540E Operation

For standard 540 PTO operation (load requiring full engine power):

• OOS: pull lever (A) back.
• Cab: push lever (A) down.

For economical 540E PTO operation (lighter load):

• OOS: push lever (A) forward.
• Cab: pull lever (A) up.

In economical mode, engine is run at lower rpm to conserve fuel and reduce overall operating noise while still turning PTO shaft at 540 rpm.

NOTE: With PTO shift lever in 540E position, engine fast idle speed is limited to 1700 rpm.
