Operate Mechanical PTO

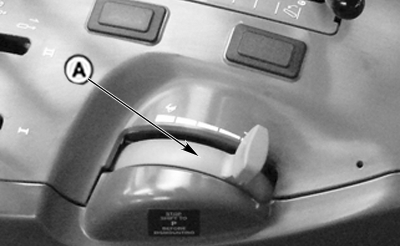

PULV000077-UN-01OCT07

Cab

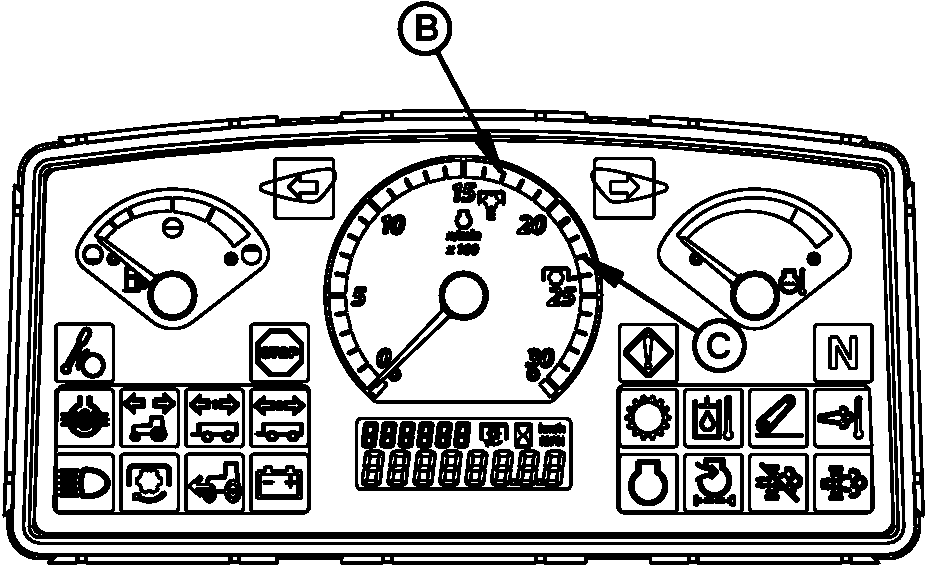

PY25161-UN-01SEP15

Instrument Panel

A - Hand Throttle Lever

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine starts if mechanical PTO lever is forward (engaged), but PTO shaft will not rotate until lever is reset.

1. Depress clutch pedal, start engine, and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540E	1700
   540	2400 (full power)

   NOTE: When in 540E position, engine speed is mechanically limited to a maximum of 1700 rpm. 540E operation will not engage if engine speed is above 1700 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   P16503-UN-11APR12

   Cab

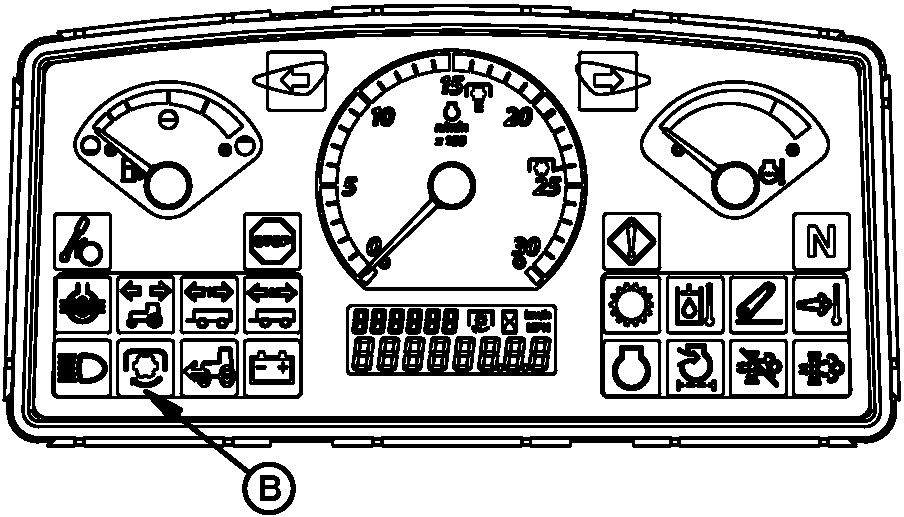

   PY25190-UN-01SEP15

   Indicator

   A - PTO Lever

   B - PTO Indicator

   To engage PTO, push lever (A) forward.

   PTO indicator (B) lights when PTO is engaged.

   IMPORTANT: A warning alarm sounds if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, move lever back and forward to reset and engage PTO.

---




3. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting, or cleaning PTO-driven equipment.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   To disengage PTO, pull lever (A) back.

   PTO brake automatically engages when PTO is disengaged.
