Operate EH PTO

PULV000077-UN-01OCT07

Cab

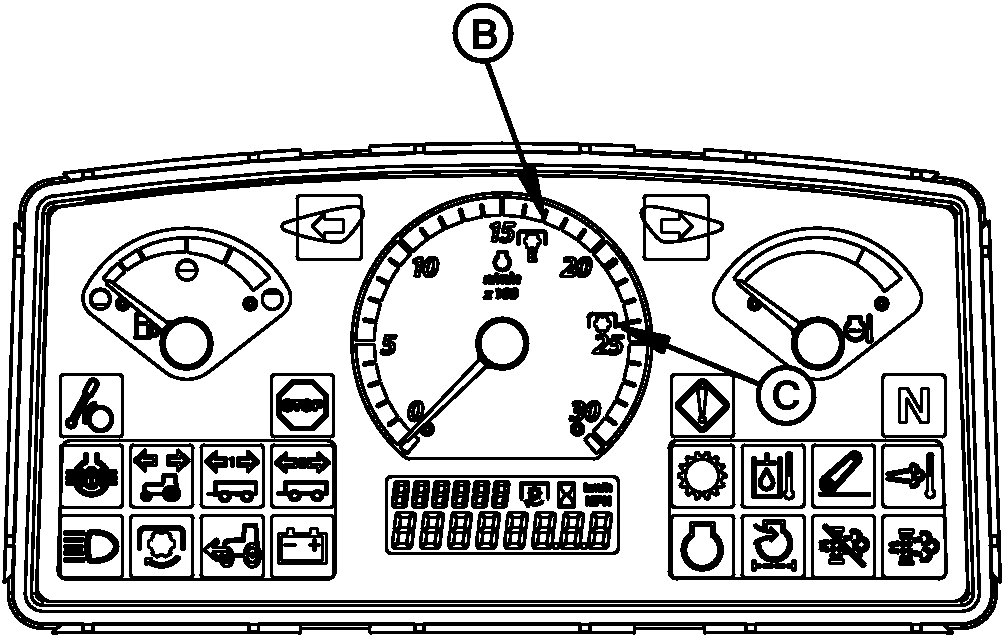

PY25157-UN-01SEP15

A - Hand Throttle Lever

B - 540E Operation Speed

C - 540 Operation Speed

NOTE: Engine starts if EH PTO switch is up (engaged), but PTO shaft will not rotate until switch is reset.

1. Depress clutch pedal, start engine, and push hand throttle lever (A) forward until tachometer indicates PTO rated speed:

   PTO Rated Speed
   PTO	Engine RPM Speed
   540E	1700
   540	2400 (full power)

   NOTE: When in 540E position, engine speed is mechanically limited to a maximum of 1700 rpm. 540E operation will not engage if engine speed is above 1700 rpm.

2. NOTE: PTO is engaged or disengaged without depressing clutch pedal.


   PY15213-UN-30MAY12

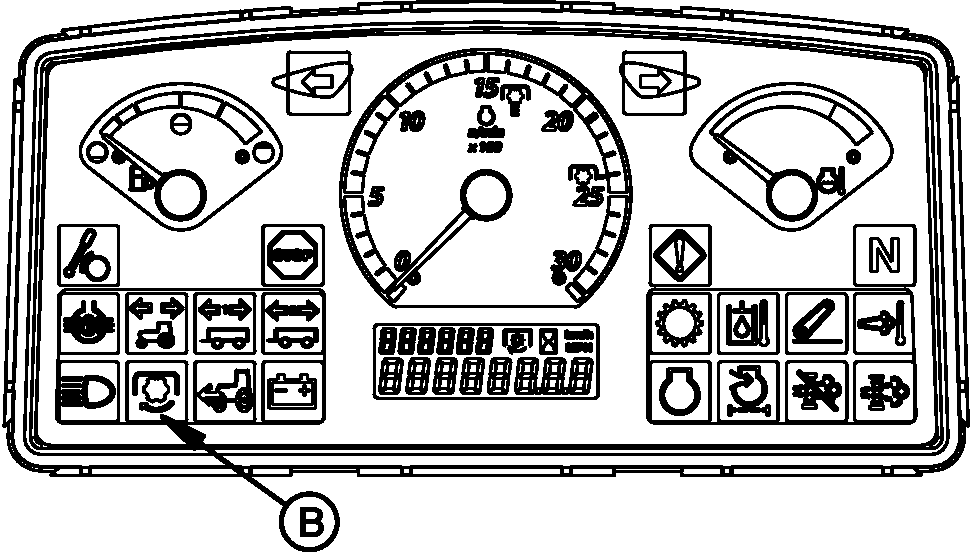

   PY25200-UN-01SEP15

   Indicator

   A - EH PTO Switch

   B - PTO Indicator

   To engage PTO, lift switch knob (A) up to “I” position.

   PTO indicator (B) will light when PTO is engaged.

   IMPORTANT: A warning alarm sounds if operator leaves seat with PTO engaged.

   NOTE: If engine is stopped while PTO is engaged, restart engine, depress, and lift switch knob to reset and engage PTO.

---




3. CAUTION: Avoid personal injury. Stop engine and allow PTO driveline to stop before adjusting, connecting, or cleaning PTO-driven equipment.

   To avoid entanglement with rotating shaft, always disengage PTO when not in use.

   To disengage PTO, push switch knob (A) down to “O” position.

   PTO brake automatically engages when PTO is disengaged.
