Warm Hydraulic System Oil

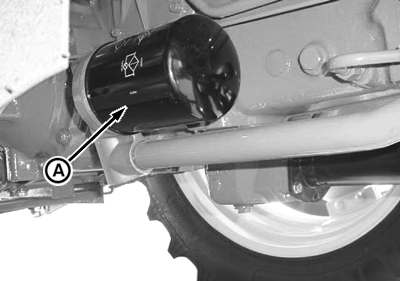

P13395-UN-17DEC04

A - Hydraulic System Filter

Hydraulic system may be slow to function when tractor is started in cold weather. This is because cold oil will not flow easily through the filter screen or hydraulic system filter (A).

Steering will also be slow until system warms up.

Hydraulic system functions normally when oil warms up.

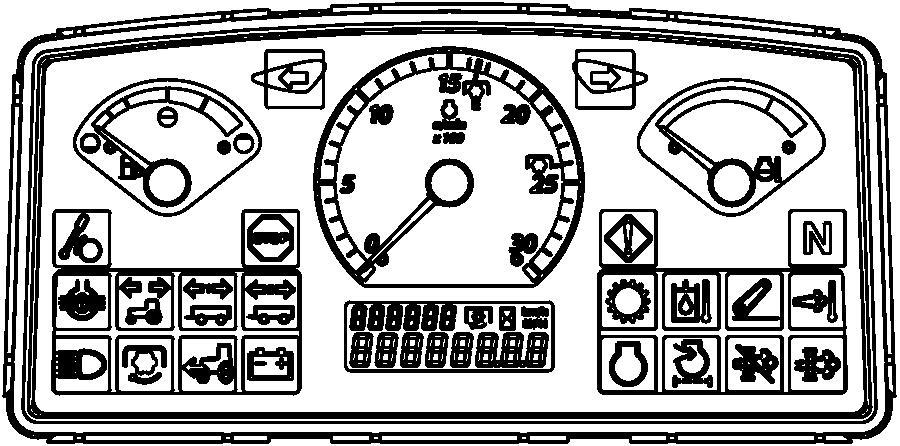

PY25156-UN-01SEP15

1. Press clutch pedal, start engine and idle at approximately. 1000 rpm.

2. Turn and hold steering wheel in full left or right turn.

   IMPORTANT: To prevent damage to hydraulic pump or relief valve, DO NOT exceed 2 to 3 minutes of warm-up time.
