Rockshaft Control Levers

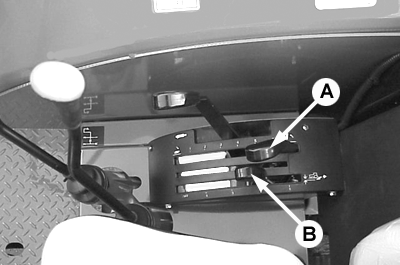

P11119-UN-17DEC01

OOS

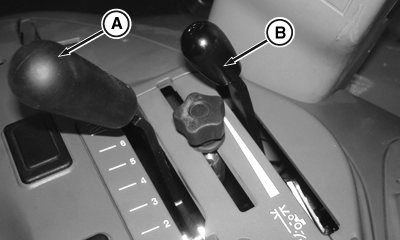

PY17159-UN-22OCT12

Cab

A - Rockshaft position control lever

B - Rockshaft draft control lever

The rockshaft position is controlled by two levers, the position control lever (A) and the draft control lever (B).

The position control lever (A) raises the hitch when pulled rearward; and lowers the hitch when moved forward. See Using Rockshaft Position Control in this section for more information.

The draft control lever (B) controls hitch position relative to draft loads. See Using Draft Control in this section for more information.
