Use Rockshaft Position Control

P11119-UN-17DEC01

OOS

PY15498-UN-08NOV12

Cab

P9043-UN-01AUG00

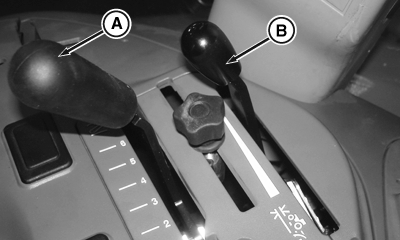

A - Rockshaft position control lever

B - Rockshaft draft control lever

CAUTION: To prevent unexpected movement of rockshaft, place draft control lever (B) in a full forward position before attaching an implement.

OOS — Place draft control lever (B) forward when you DO NOT want rockshaft to adjust automatically to draft load, such as attaching implement to Tractor.

Cab — Place draft control lever (B) all the way down when you DO NOT want rockshaft to adjust automatically to draft load, such as attaching implement to Tractor.

Use position control lever (A) to control hitch movement and depth. Position control should be used for the following applications:

• CONSTANT DEPTH of implements on level terrain and for non-ground engaging implements such as spreaders or sprayers. Place position control lever at depth desired.
• TRANSPORT of implements and end of field turn-around. Position control lever should be moved fully rearward for transport for both load and non-load sensing usage.
• FLOAT operation for implements with skids or depth gauge wheels designed to carry full implement weight. Push both levers all the way forward so implement can follow the ground contour.

NOTE: Lift links can be adjusted for lateral float. (See Adjusting Lateral Float in this section.)
