Set Position Control Lever Stop

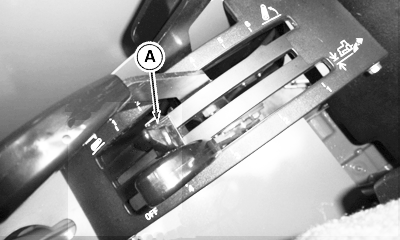

PY14675-UN-19JUL12

OOS

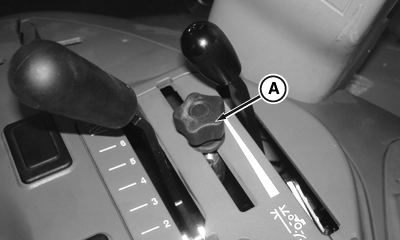

PY16407-UN-20OCT12

Cab

A - Lever Stop

NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

1. Operate implement for a few minutes to determine proper depth or height.

2. Raise lever stop (A), and slide against position control lever. Lock stop in position by pressing lever down. Rockshaft will no lower to same position each time control lever is pushed forward to the stop.
