Light Switch

PY15423
PY15423-UN-24JUL12

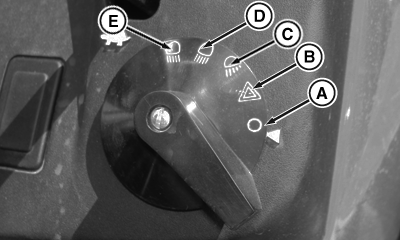

Switch with Warning Lights Position

A - Lights Off Position

B - Warning Lights Position

C - Worklight Position

D - Bright Headlights Position

E - Dim Headlights Position

Tractor light switch has five positions:

Switch

Position

Lights on

A

  • All lights are off

B

  • Warning Lamps

C

  • Bright Headlights
  • Worklight

D

  • Bright Headlights
  • Warning Lamps

E

  • Dim Headlights
  • Warning Lamps

Position C is for field use only. Do not use on roads. Flood lights might blind or confuse other drivers.

Position D is for highway driving during daytime or night time. Switch to dim headlight position before meeting other vehicles.

PX07220,00001F6-19-20160405
