Using Warning Lights

CAUTION: Prevent collisions between other road users, especially slow-moving tractors with towed implements or attachments and self-propelled machines operating on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, hazard flashers, and turn signals day and night. Obey local equipment lighting and signaling regulations. Keep all lights and warning plaques clean and in good condition. Replace or repair lights and markings that have been damaged or lost. An implement safety lighting kit is available from your John Deere Dealer.

In case of problems when operating the tractor on public roadways, select the hazard flashers/turn signals (A) by placing the switch in the hazard lights position (B).

PY15409-UN-18JUL12

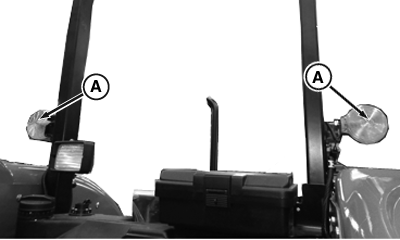

Hazard Flashers/Turn Signals, OOS

P13889-UN-20DEC05

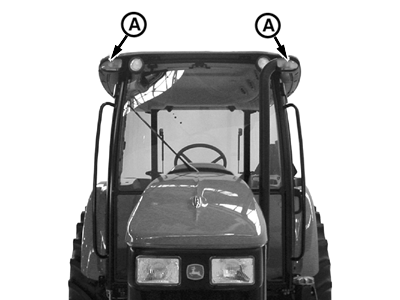

Front Hazard Flashers/Turn Signals, Cab

PY15494-UN-08NOV12

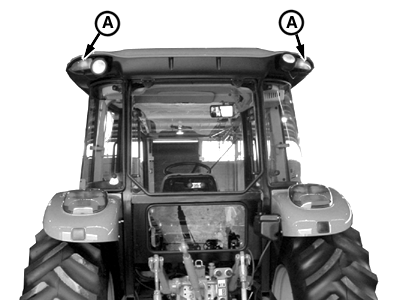

Rear Hazard Flashers/Turn Signals, Cab

P15820-UN-10OCT09

Switch

A - Hazard Flashers/Turn Signals

B - Hazard Lights Position
