Use Turn Signals

PY16675-UN-10OCT12

PY24446-UN-01SEP15

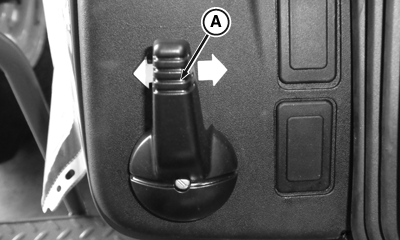

A - Turn Signal Lever

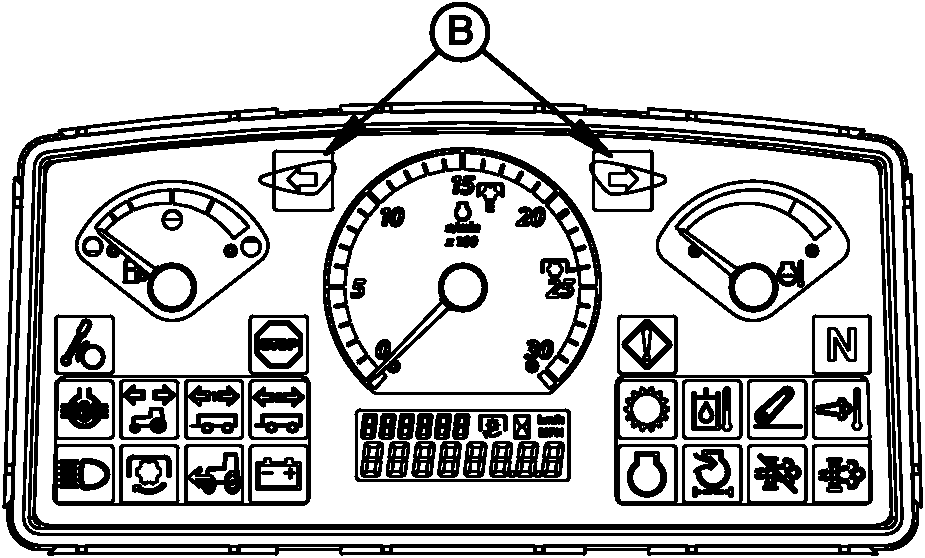

B - Instrument Panel Indicator Lights

Move turn signal lever (A) left to indicate left-hand turn or right for right-hand turn.

Indicator lights (B) flash to signal turn direction.

PY15487-UN-29NOV12

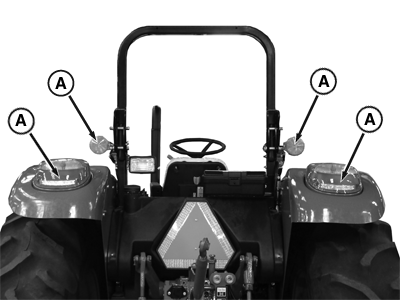

Hazard Flashers/Turn Signals, OOS

PY16674-UN-10OCT12

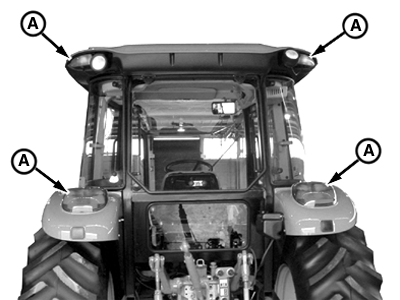

Hazard Flashers/Turn Signals, Cab

A - Hazard Flashers/Turn Signals

When lever is to the left, the left side hazard flashers/turn signals (A) flash while right side lights glow steady. When turn signal lever is to the right, the right side hazard flashers/turn signals (A) flash while left side lights glow steady.

NOTE: Be sure to manually return lever to center position after turning.
