Operate Beacon Light

P13903-UN-21DEC05

Cab

P13904-UN-21DEC05

Cab

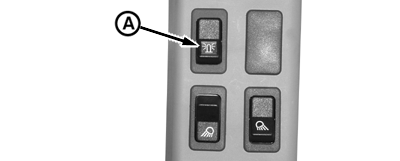

A - Beacon Light Switch

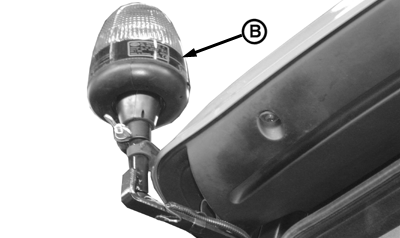

B - Beacon Light

Depress switch (A) to activate light (B).

To remove light for storage or clearance:

1. Loosen wing nut and lift light from tube.

2. Install cap on tube end to protect light socket.
