Accessory Electrical Outlet

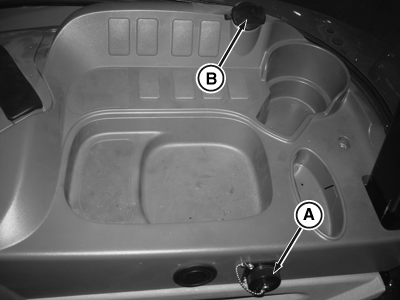

Accessory 12 V electrical convenience outlet (A) is used when connecting auxiliary equipment.

Power outlet (B) is an additional accessory 12 V electrical outlet for connecting auxiliary equipment.

Electrical convenience outlet (A) is protected by fuse F11 (30A) and electrical power outlet (B) is protected by fuse F06 (30A).

PY16685-UN-15OCT12

Cab

A - 12 V Electrical Convenience Outlet

B - 12 V Electrical Power Outlet

Accessory 12-volt electrical outlet (A) is used when connecting auxiliary equipment.

NOTE: For fuse location, see Load Center Fuses and Relays — Cab, in Electrical and Lighting Maintenance section.
