Checking Air Restriction Indicator Performance

PY25162-UN-31AUG15

P13226D-UN-01AUG05

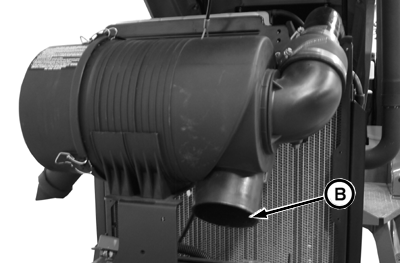

A - Air Restriction Indicator Light

B - Air Intake Tube

Service Interval — Every 500 operating hours

Check air restriction indicator performance obstructing air intake tube (B) intentionally. Air restriction indicator (A) must light.
