Check Neutral Start System — Mechanical PTO

PY16711-UN-22OCT12

Cab shown, OOS similar

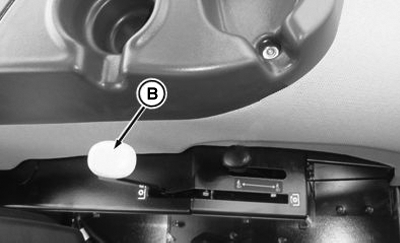

PY13189-UN-04DEC12

Cab shown, OOS similar

PULV004928-UN-18JUN09

Cab shown, OOS similar

A - Gear shift lever

B - PTO clutch lever

C - EH Directional Reverser Lever

Service Interval — Every 250 operating hours

Your John Deere Tractor is equipped with interlocks to prevent inadvertent movement when the engine is started. Turning the key switch with the clutch pedal depressed should start the engine if all the following conditions exist:

• Place gearshift lever (A) in Park "P" or Neutral "N" position
• PTO lever (B) in disengaged position
• PR: Move EH Directional Reverser lever (C) to forward or reverse position.

CAUTION: If starter turn engine in any of the following steps, have the neutral start system repaired by your John Deere dealer.

Turning the key switch to the start position should NOT start the engine, if either of the following exist:

• Gear shift lever (A) in gear (not in Park or Neutral or position)
• PTO lever (B) in engaged position
