Lubricate 2WD Front Axle

P13185-UN-17SEP04

P13186-UN-17SEP04

P13187-UN-17SEP04

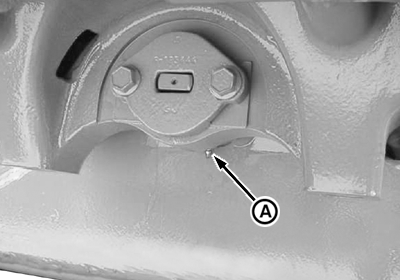

A - Front Lub Fitting

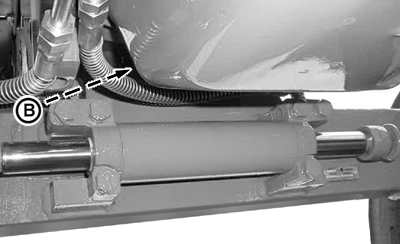

B - Rear Lub Fitting

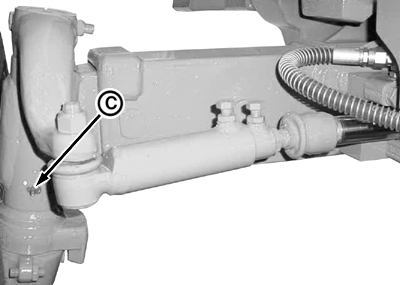

C - Steering Spindles Lub Fitting

Service Interval:

Front Axle Pivot Pin — Every 50 hours Steering Spindles — Every 50 hours [under moist or muddy conditions or extreme loads (frontal loader)] Steering Spindles — Every 250 hours (under normal conditions)

Lubricate front axle pivot pin applying multipurpose grease to front (A) and rear (B) lub fittings.

Lubricate steering spindles applying multipurpose grease to lub fittings (C).

See Grease in Fuels, Lubricants, and Coolants section.
