Load Center Fuses and Relays – OOS

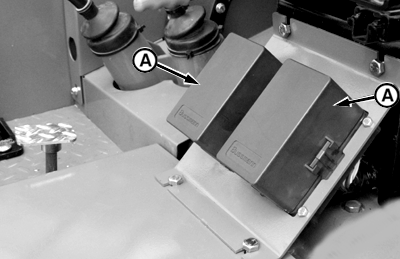

P16019-UN-17MAR10

Tractor Fuses, PR

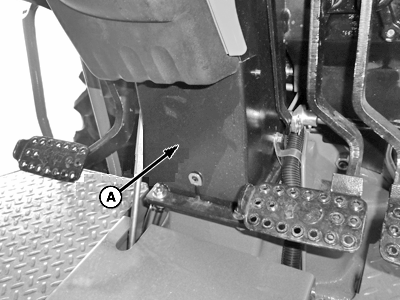

CPA0002632-UN-21MAR16

Tractor Fuses, SS

A - Cover

Remove covers (A).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 A	Orange
10 A	Red
15 A	Blue
20 A	Yellow
30 A	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage occur. If original size fuse not carries electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

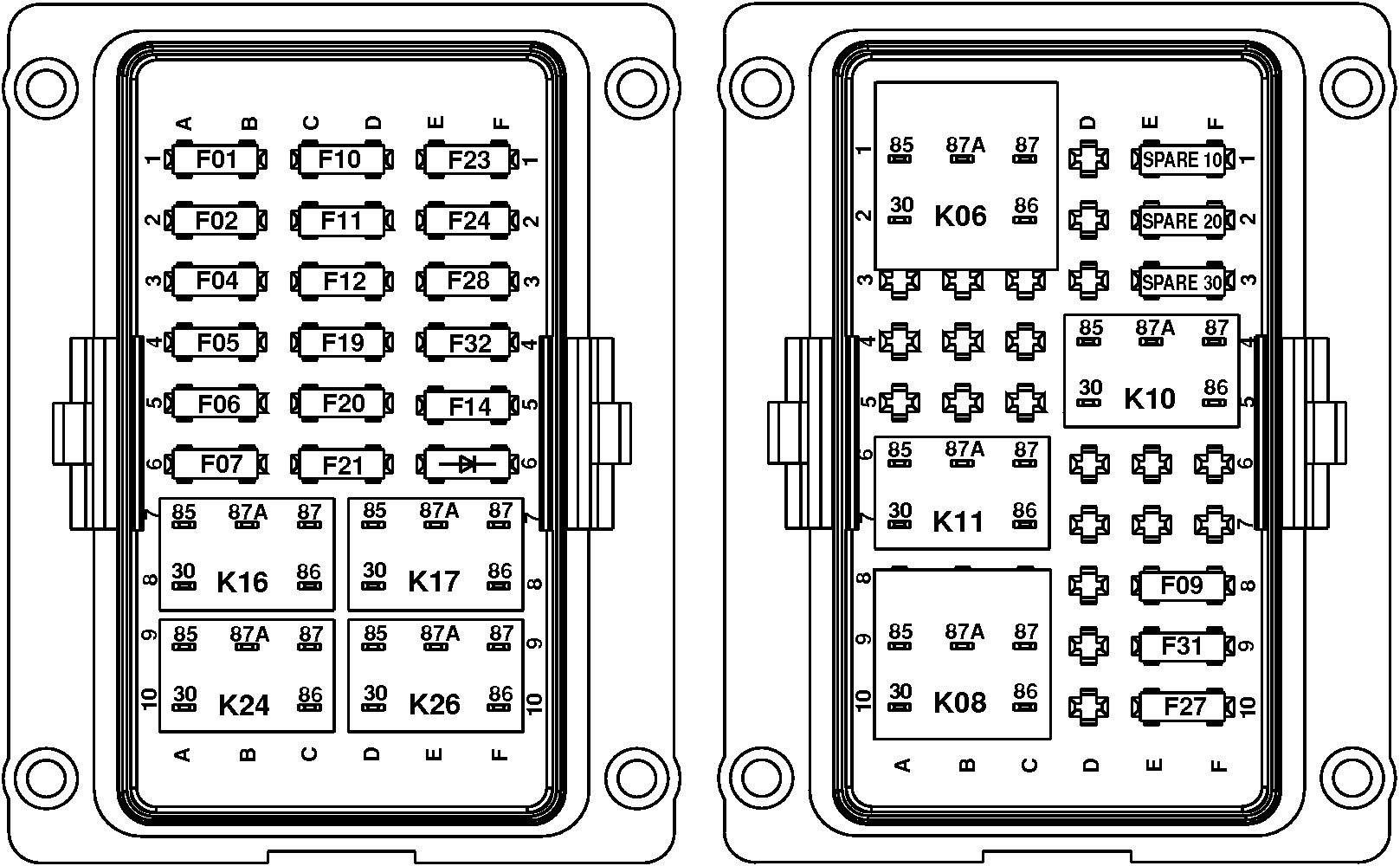

PY16705-UN-20OCT12

Fuses, PR

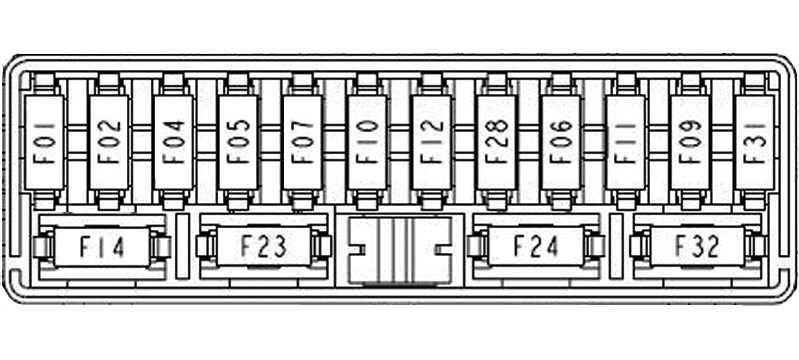

PY16584-UN-23JUL12

Fuses, SS

F01 - Key Switch Fuse, 30 A

F02 - Turn/Hazard Fuse, 30 A

F04 - Light Switch Fuse, 20 A

F05 - Instrument Cluster Fuse, 10 A

F06 - Turn Signal Light Switch Fuse, 10 A

F07 - Work Lamp Fuse, 30 A

F09 - Tail/Clearance/License Light Fuse

F10 - Battery Switch Fuse, 30 A

F11 - Battery Unswitch Fuse, 30 A

F12 - Trailer Power Fuse, 30 A

F14 - Diagnostic Fuse

F19 - EH Controller Fuse, 10 A (PR only)

F20 - ELX Fuse, 10 A (PR only)

F21 - ELX Fuse, 10 A (PR only)

F23 - Low Beam Fuse, 10 A

F24 - High Beam Fuse, 10 A

F27 - Backup Alarm Fuse, 5 A (PR only)

F28 - Seat Fuse, 10 A

F31 - Tail/Clearance/License Light Fuse

F32 - Flood Light Fuse, 10 A

K06 - Trailer Power Relay (PR only)

K08 - Work Lamp Relay (PR only)

K10 - Clearance Lights Relay (PR only)

K11 - Fuel Flow Relay (PR only)

K16 - Neutral Relay (PR only)

K17 - Transmission Enable Relay (PR only)

K24 - ELX Relay (PR only)

K26 - Accessory Relay (PR only)

SPARE 10 - Spare Fuse, 10A (PR only)

SPARE 20 - Spare Fuse, 20A (PR only)

SPARE 30 - Spare Fuse, 30A (PR only)

V10 - Diode (PR only)

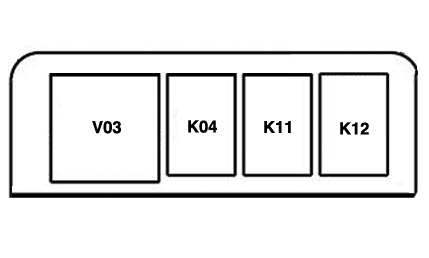

PY20864-UN-14NOV14

Center Console

V03 - Diode Block

K04 - PTO Off/Neutral Relay (SS only)

K11 - Fuel Flow Relay (SS only)

K12 - Neutral Latch Relay (SS only)

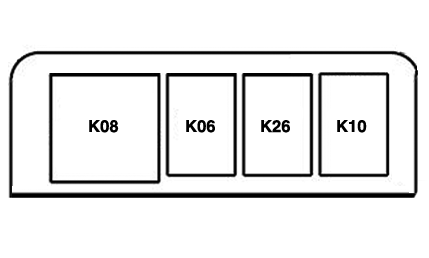

PY20865-UN-14NOV14

Right Hand Cover, SS

K08 - Work Lamp Relay (SS, only)

K06 - Trailer Power Relay (SS, only)

K26 - Accessory Relay (SS, only)

K10 - Tail/Clearance/License Light Relay (SS, only)

PY13181-UN-20OCT12

Center Console (PR) / Right Hand Cover (SS)

K27 - Right Flash Relay

K07 - Left Flash Relay

K03 - Right Turn Relay (EEC Lighting)

K02 - Left Turn Relay (EEC Lighting)

K05 - Turn/Hazard Relay
