Load Center Fuses and Relays – Cab

P13931-UN-29DEC05

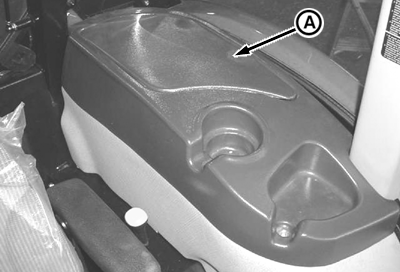

Left-Hand Console

PY16420-UN-23OCT12

A - Cover

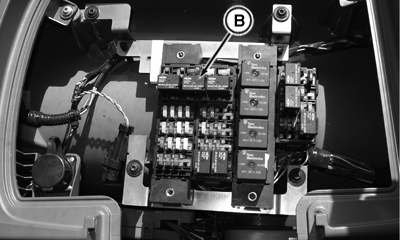

B - A/C and Wiper Fuse/Relay Block

Remove cover (A) to access main fuse and relay load center and fuses/relay block (B).

All electrical circuits are protected by fuses. Amperage rating is marked on each fuse, plus fuses are color coded to ensure proper replacement.

Fuse Rating	Color
5 A	Orange
10 A	Red
15 A	Blue
20 A	Yellow
30 A	Green

IMPORTANT: DO NOT replace original fuse with higher rated fuse or machine damage occur. If original size fuse not carries electrical load and continues to blow, have the electrical system checked by your John Deere dealer.

PY16706-UN-24OCT12

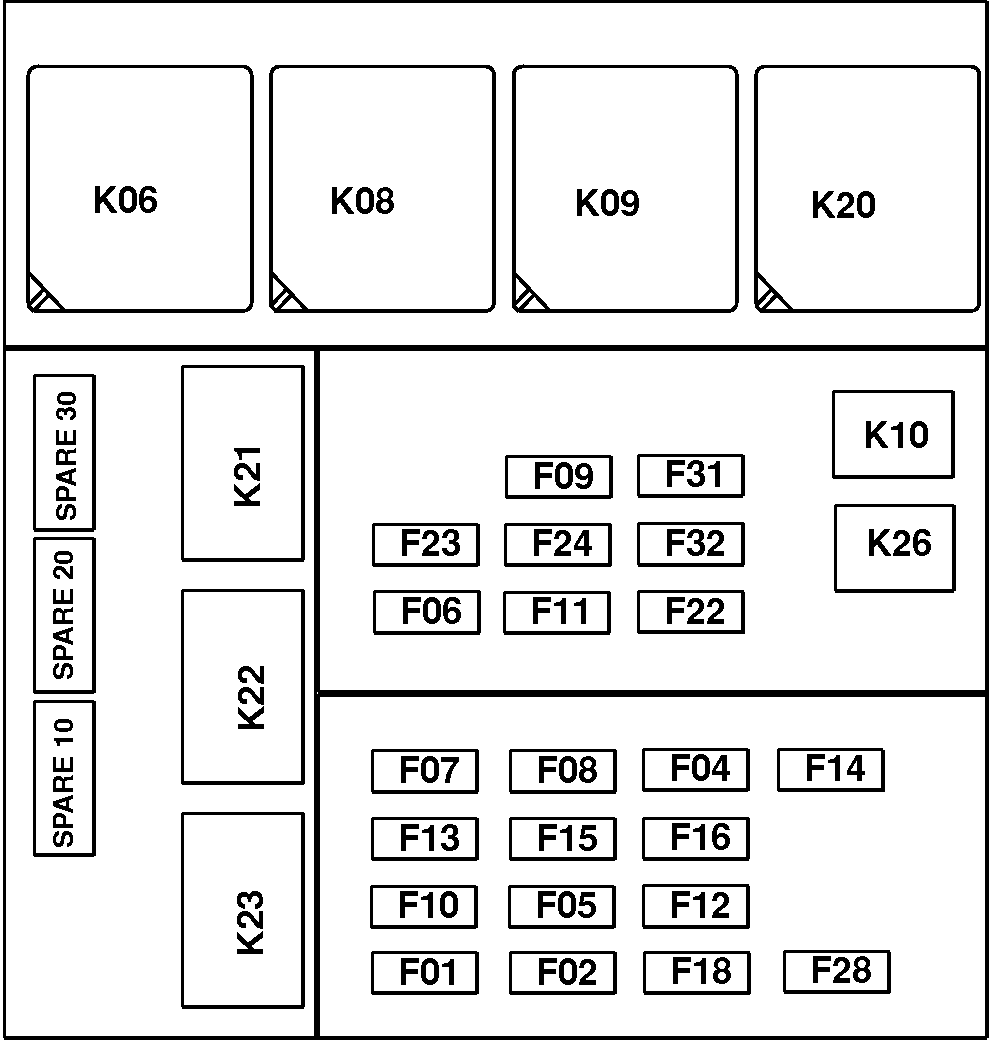

Load Center, SS

PY16421-UN-24OCT12

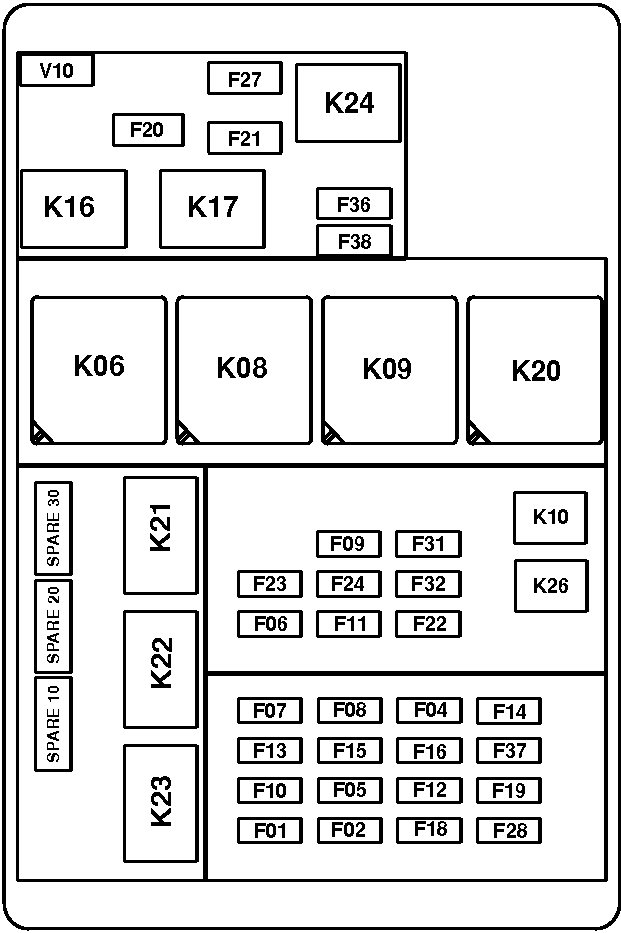

Load Center, PR

F01 - Key Switch Fuse, 30 A

F02 - Turn/Hazard Fuse, 30 A

F04 - Light Switch Fuse, 20 A

F05 - Instrument Cluster Fuse, 10 A

F06 - Turn Signal Light Switch Fuse, 10 A

F07 - Rear Work Light Fuse, 30 A

F08 - Front Work Light Fuse, 30 A

F09 - Tail/Clearance/License Light Fuse, 10 A

F10 - Switched Battery Power Fuse, 30A

F11 - Unswitched Battery Power Fuse, 30A

F12 - Trailer Power Fuse, 30 A

F13 - HVAC Fuse, 30 A

F14 - Diagnostic Fuse

F15 - Wiper Fuse, 20 A

F16 - Left Blower Fuse, 20 A

F18 - Dome Light, 10 A

F19 - EH Control Unit Fuse, 10 A (PR only)

F20 - ELX Fuse, 10 A (PR only)

F21 - ELX Fuse, 10 A (PR only)

F22 - Radio Fuse, 10 A

F23 - Low Beam Fuse, 10 A

F24 - High Beam Fuse, 10 A

F27 - Backup Alarm Fuse, 5 A (PR only)

F28 - Seat Fuse, 10 A

F31 - Tail/Clearance/License Light Fuse, 10 A

F32 - Trailer Work Light Fuse, 10 A

F36 - AMS Battery, 10 A (PR only)

F37 - AutoTrac Universal Fuse, 10 A (PR only)

F38 - AMS Battery, 10 A (PR only)

K06 - Trailer Power Relay

K08 - Rear Work Light Relay

K09 - Front Work Lights Relay

K10 - Clearance Light Relay

K16 - Neutral Relay (PR only)

K17 - Transmission Enable Relay (PR only)

K20 - HVAC Relay

K21 - Wiper System Relay

K22 - Left Blower Relay

K23 - Right Blower Relay

K24 - ELX Relay (PR only)

K26 - Accessory Relay

SPARE - 10 A

SPARE - 20 A

SPARE - 30 A

V10 - Diode (PR only)

PY16707-UN-23OCT12

Center Console

K04 - PTO Off/Neutral Relay

K11 - Fuel Flow Relay (SS only)

K12 - Neutral Latch Relay (SS only)

V03 - Diode Block

PY16708-UN-23OCT12

Center Console

K27 - Right Flash Relay

K07 - Left Flash Relay

K03 - Right Turn Relay (EEC Lighting only)

K02 - Left Turn Relay (EEC Lighting only)

K05 - Turn/Hazard Relay
