Removing Beacon Light Assembly

P17250-UN-28FEB14

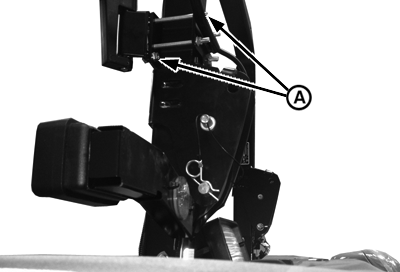

Hardware - Right-Hand Mirror

P17251-UN-28FEB14

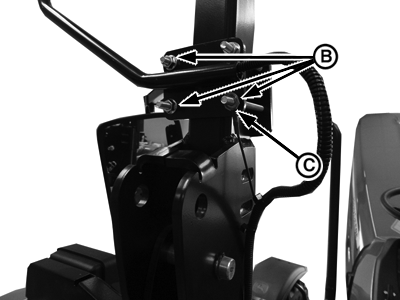

Hardware - Beacon Light Assembly

A - Bolt and Nut

B - Lock Nuts

C - Ground Cable

NOTE: Use a wrench in bolt head to hold the bolt while removing the nut.

1. Remove bolt and nut (A).

2. Remove lock nuts (B).

3. Remove ground cable (C) from bolt.

4. Remove beacon light assembly.
