Tread Settings—Adjustable Front Axle
LV9047-UN-19NOV03
LV1515-UN-05MAR96

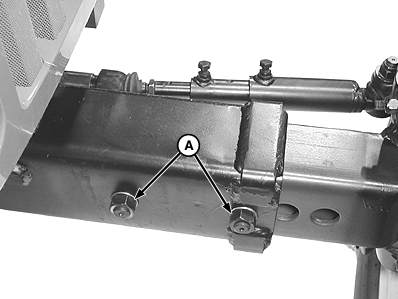

A - Adjustment Holes
Front rims are offset. With some tires, this provides two tread spacings at each axle setting.
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram C Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tire |
Tread Position1 |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|
|
10 X 16 8 PR |
INT2 |
INT2 |
INT2 |
INT2 |
INT2 |
INT2 |
|
ADJUSTABLE FRONT AXLE TREAD SETTINGS Diagram D Centerline-to-Centerline |
||||||
|---|---|---|---|---|---|---|
|
Tire |
Tread Position1 |
|||||
|
1 |
2 |
3 |
4 |
5 |
6 |
|
|
10 X 16 8 PR |
1574 mm (62.0 in.) |
1674 mm (65.9 in.) |
1774 mm (69.8 in.) |
1874 mm (73.8 in.) |
1974 mm (77.7 in.) |
2074 mm (81.6 in.) |
|
1 Number
1 position is with axle adjustment at its most inward location. See
Adjust Front Axle Tread Width — 2WD or Adjust Front Axle Tread
Width (2WD) — High Clearance in this section.
|
PX07220,00002F7-19-20160505 |
