Keep ROPS Installed Properly

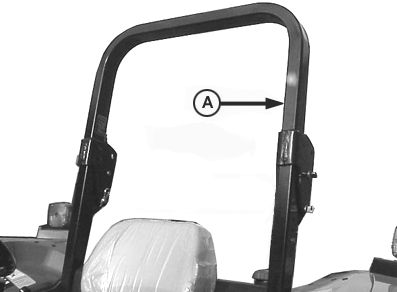

CPA0002580-UN-16MAR16

ROPS-Operating Position

LV1927-UN-28APR97

ROPS-Folded

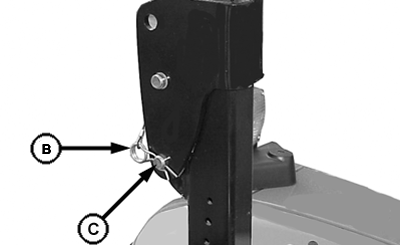

CPA0002620-UN-16MAR16

A - ROPS Crossbar

B - Quick-Lock Pin

C - Head Pins

TO LOWER ROPS CROSSBAR (A):

1. Remove quick-lock pins (B) and heading pins (C).
2. Lower crossbar (A) of ROPS onto stops.
3. Reinstall pins (C and B) into holes in ROPS to lock crossbar down.

CAUTION: Always keep upper part of ROPS pinned in vertical position (as pictured) when operating Tractor. If Tractor is operated with ROPS folded (for example, to enter a low building) drive with extreme caution and DO NOT use seat belt.

Fold the ROPS up again when the Tractor is operated under normal conditions.

TO PUT ROPS IN OPERATING POSITION:

Lift crossbar (A) of ROPS to position shown. Install pins (C) and quick-lock pins (B).
