Towing Tractor

PY13166-UN-20OCT12

PY20873-UN-02DEC14

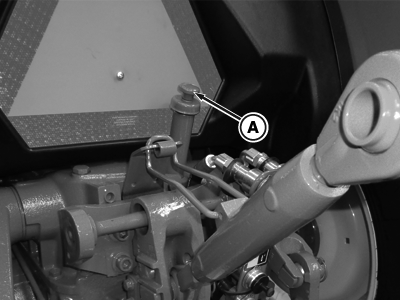

A - Dipstick

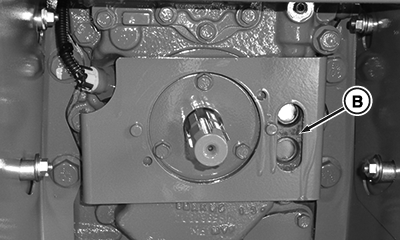

B - Sight Glass

CAUTION: NEVER tow Tractor faster than 16 km/h (10 mph). Have an operator steer and brake Tractor.

IMPORTANT: To avoid damaging transmission-hydraulic system, observe the following precautions:

1. SS: Be sure that transmission-hydraulic system oil is to the full mark on the dipstick (A). If the Tractor is to be towed with the front wheels raised, add 1 liter of oil each 90 mm (3-1/2 in.) the wheels are raised. DO NOT raise front wheels more than 305 mm (12 in.) above ground.

   NOTE: After transporting Tractor, drain oil that was added for towing.

2. PR: Check transmission- hydraulic oil level in sight glass (B). (See Check Transmission-Hydraulic System Oil Level in Transmission Maintenance section). Add 1 L (1 qt.) for each 90 mm (3-1/2 in.) front wheels are raised off the ground. DO NOT raise front wheels more than 305 mm (12 in.) above ground.

   NOTE: After transporting Tractor, drain oil that was added for towing.

3. Make sure that the differential lock is disengaged.

4. Make sure that range and gear levers are in neutral and that the park brake is disengaged.

IMPORTANT: DO NOT tow any Tractor faster than 8 km/h (5 mph) if oil temperature is below 0°C (32°F).
