Service Daily Before Start-Up

1.

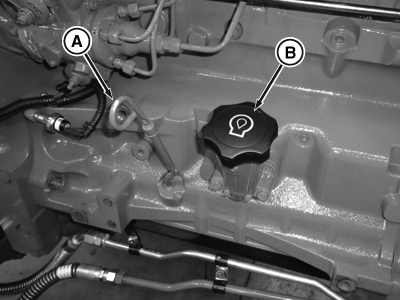

   PY16565-UN-18JUL12

   A - Dipstick

   B - Filler Opening

   Check engine oil level. Remove dipstick (A) and reinsert completely. Remove and check oil level.

   Safe operating range is between the two marks on dipstick. Do not start engine if oil level is below the lower mark on the dipstick. Add seasonal viscosity grade oil at filler opening (B). (See Fuel, Lubricants, and Coolants section for oil specifications.)

---




2.

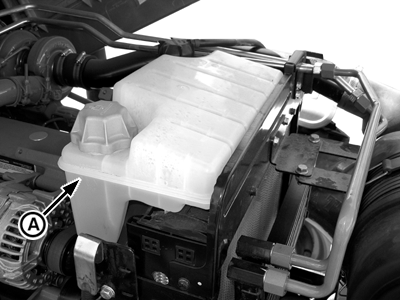

   P15978-UN-09MAR10

   A - Recovery Tank

   Check coolant level in recovery tank (A). If engine is cool and level is below "LOW" mark, add coolant to recovery tank to bring level to "LOW" mark.

   NOTE: Coolant level with a cold engine should be at the "LOW" mark. A tractor at operating temperature should have a coolant level at the "FULL" mark.

---




3. Lubricate the following points every 10 hours when operating in extremely wet conditions or mud.

   • Front Axle King Pin
   • Steering Knuckles
   • Tie Rod Ends



   Use multipurpose oil. (See Fuel, Lubricants, and Coolants section for oil specifications.)

   For detailed information, see Lubrication and Maintenance section.
